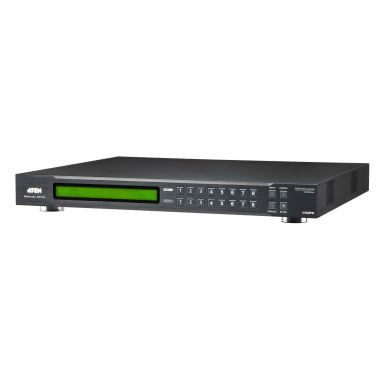

ATEN VM5808HA-AT-E matrix switcher AV matrix switcher 58.1 W
In Stock
|
Call For Price (0808 189 1246)
Features
Product type
AV matrix switcher
HDCP
Yes
HDCP version
1.4
3D
Yes
Extended display identification data (EDID)
Yes
Data transfer rate
6.75 Gbit/s
Maximum pixel clock
225 MHz
Maximum resolution
1920 x 1080 pixels
Design
Housing material
Metal
Rack mounting
Yes
Rack capacity
1U
Housing colour
Black
On/off switch
Yes
Display
Built-in display
No
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
RS-232 ports
1
HDMI input ports quantity
8
HDMI output ports quantity
9
Audio (L/R) out
1
Power
Power consumption (max)
58.1 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
1 A
Power consumption (typical)
56.6 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Heat dissipation
265 BTU/h
Heat dissipation (max)
272 BTU/h
Logistics data
Country of origin
Taiwan
Weight & dimensions
Width
378.2 mm
Depth
432.4 mm
Height
44 mm
Weight
5.54 kg
Packaging content
Cables included
AC
Rack mount kit
Yes
Manual
Yes
ATEN VM5808HA-AT-E matrix switcher AV matrix switcher 58.1 W
| Length | 43.24 cm |
| Width | 37.82 cm |
| Height | 4.40 cm |
| Weight | 5.54 kgs |
