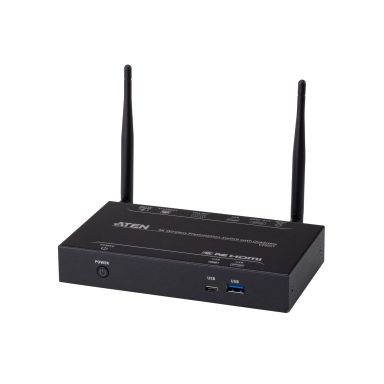

ATEN VP2021 wireless presentation system HDMI + VGA (D-Sub) Desktop

Form factor

Desktop

Product colour

Black

Housing material

Metal

LED indicators

Power

Maximum resolution (VGA)

1920 x 1080 pixels

Maximum resolution (HDMI)

4096 x 2160 pixels

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

AirPlay mirroring

Yes

Google Cast

Yes

Number of simultaneously connected devices (max)

4

Web-based management

Yes

On/off switch

Yes

Antenna type

External

Antennas quantity

2

Wi-Fi standards

Wi-Fi 5 (802.11ac)

Frequency band

2.4/5 GHz

Security algorithms

WPA2-PSK, WEP, WPA, WPA2

Maximum operating distance

30 m

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Interface

HDMI + VGA (D-Sub)

Number of HDMI outputs

1

VGA (D-Sub) output ports

1

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

1

Headphone outputs

1

DC-in jack

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Power source type

DC

Input voltage

12 V

Power consumption (typical)

12 W

Power over Ethernet (PoE)

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

-20 - 60%

Storage temperature (T-T)

0 - 80 °C

Width

104 mm

Depth

170 mm

Height

28.3 mm

Weight

472 g

Package weight

1.15 kg

AC adapter included

Yes

Quick start guide

Yes

Country of origin

Taiwan

Products per master (outer) case

5 pc(s)

Master (outer) case width

232 mm

Master (outer) case gross weight

6.37 kg

Master (outer) case length

500 mm

Master (outer) case height

283 mm
