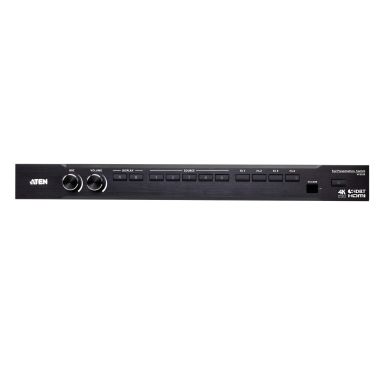

ATEN VP3520 matrix switcher Media presentation matrix switcher 46.7 W

Product type

Media presentation matrix switcher

HDCP

Yes

HDCP version

2.2

Extended display identification data (EDID)

Yes

High Dynamic Range (HDR) supported

Yes

Supported resolutions

4096 x 2160, 3840 x 2160, 1920 x 1080, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1024 x 768, 800 x 600, 720 x 400, 640 x 480

Maximum resolution (HDMI)

4096 x 2160 pixels

Housing colour

Black

Remote control included

Yes

Rubber feet

Yes

Built-in display

No

RJ-45 input ports

2

RJ-45 output ports

1

RS-232 ports

2

Analog audio output terminal ports

1

HDMI input ports quantity

3

HDMI output ports quantity

1

Relay outputs

2

Power consumption (max)

46.7 W

AC input voltage

110 - 220 V

Power consumption (typical)

45.8 W

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Heat dissipation

310 BTU/h

Heat dissipation (max)

314 BTU/h

Width

272.3 mm

Depth

432.4 mm

Height

44 mm

Package width

338 mm

Package depth

515 mm

Package height

155 mm

Cables included

AC

Rack mount kit

Yes

Manual

Yes

IR receiver included

Yes
