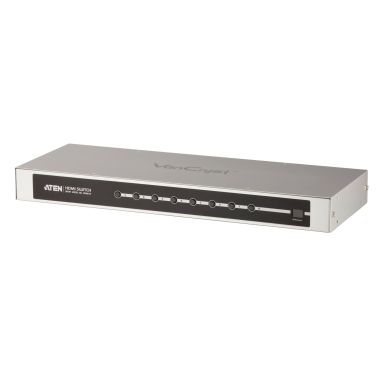

Aten VS0801H video switch HDMI
In Stock
|
£96.42
£115.70 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Video port type
HDMI
Video out
1 x HDMI Type A Female (Black)
Video in
8 x HDMI Type A Female (Black)
RS-232 ports
1
HDMI version
1.4
HDMI ports quantity
9
Number of HDMI outputs
1
HDMI in
8
DC-in jack
Yes
Features
HD type
Full HD
3D
Yes
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
Output impedance
100 Ω
Input impedance
100 Ω
Product colour
Black, Silver
Supported video modes
480p, 720p, 1080i, 1080p
Supported graphics resolutions
640 x 480 (VGA), 800 x 480 (WVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Rack mounting
Yes
Plug and Play
Yes
Maximum resolution
1920 x 1080 pixels
Maximum refresh rate
60 Hz
Maximum operating distance
15 m
Material
Metal
HDCP
Yes
Bandwidth
225 MHz
Bandwidth
6.75 Gbit/s
Power
Power consumption (typical)
3.71 W
Weight & dimensions
Width (imperial)
43.7 cm (17.2")
Height (imperial)
4.39 cm (1.73")
Depth (imperial)
16 cm (6.29")
Width
437 mm
Height
44 mm
Depth
159.8 mm
Weight
1.75 kg
Technical details
HD type
Full HD
3D
Yes
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
Output impedance
100 Ω
Input impedance
100 Ω
Width (imperial)
43.7 cm (17.2")
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 80%
Height (imperial)
4.39 cm (1.73")
Depth (imperial)
16 cm (6.29")
Width
437 mm
Height
44 mm
Depth
159.8 mm
Product colour
Black, Silver
Video port type
HDMI
Video out
1 x HDMI Type A Female (Black)
Video in
8 x HDMI Type A Female (Black)
Supported video modes
480p, 720p, 1080i, 1080p
Supported graphics resolutions
640 x 480 (VGA), 800 x 480 (WVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Rack mounting
Yes
Plug and Play
Yes
Maximum resolution
1920 x 1080 pixels
Maximum refresh rate
60 Hz
Maximum operating distance
15 m
Material
Metal
HDMI version
1.4
HDMI ports quantity
9
HDCP
Yes
Remote control included
Yes
Bandwidth
225 MHz
Bandwidth
6.75 Gbit/s
Harmonized System (HS) code
85176990
Compliance certificates
RoHS
Packaging content
User guide
Yes
Remote control included
Yes
AC adapter included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 80%
Logistics data
Harmonized System (HS) code
85176990
Aten VS0801H video switch HDMI
| Weight | 1.75 kgs |
