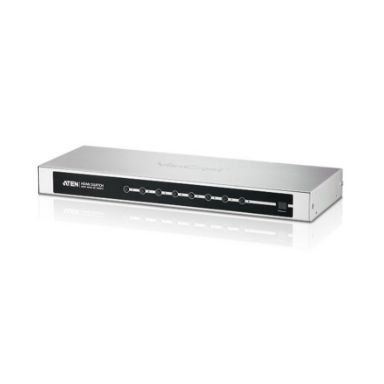

Aten Vs0801h-At-E 8-Port Hdmi Switch
In Stock
|
$169.53
$203.44 (Inc. VAT)
Ports & interfaces
Video port type
HDMI
RS-232 ports
1
HDMI version
1.4
HDMI ports quantity
9
Number of HDMI outputs
1
HDMI in
8
DC-in jack
Yes
Features
HD type
Full HD
3D
Yes
Dolby technologies
DTS-HD Master Audio-Dolby TrueHD
Output impedance
100 Ω
Input impedance
100 Ω
Product colour
Black- Silver
Supported video modes
480p-720p-1080i-1080p
Supported graphics resolutions
640 x 480 (VGA)-800 x 480 (WVGA)-1280 x 720 (HD 720)-1920 x 1080 (HD 1080)
Rack mounting
Yes
Plug and Play
Yes
Maximum resolution
1920 x 1080 pixels
Maximum refresh rate
60 Hz
Maximum operating distance
15 m
Material
Metal
HDCP
Yes
Bandwidth
225 MHz
Bandwidth
6.75 Gbit/s
Power
Power consumption (typical)
3.71 W
Weight & dimensions
Width
437 mm
Height
44 mm
Depth
159.8 mm
Weight
1.75 kg
Technical details
HD type
Full HD
3D
Yes
Dolby technologies
DTS-HD Master Audio-Dolby TrueHD
Output impedance
100 Ω
Input impedance
100 Ω
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 80%
Width
437 mm
Height
44 mm
Depth
159.8 mm
Product colour
Black- Silver
Video port type
HDMI
Supported video modes
480p-720p-1080i-1080p
Supported graphics resolutions
640 x 480 (VGA)-800 x 480 (WVGA)-1280 x 720 (HD 720)-1920 x 1080 (HD 1080)
Rack mounting
Yes
Plug and Play
Yes
Maximum resolution
1920 x 1080 pixels
Maximum refresh rate
60 Hz
Maximum operating distance
15 m
Material
Metal
HDMI version
1.4
HDMI ports quantity
9
HDCP
Yes
Remote control included
Yes
Bandwidth
225 MHz
Bandwidth
6.75 Gbit/s
Sustainability certificates
RoHS
Packaging content
User guide
Yes
Remote control included
Yes
AC adapter included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 80%
