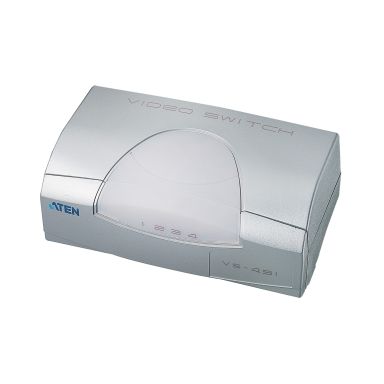

ATEN VS491 video switch VGA
In Stock
|
£48.31
£57.97 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
VGA (D-Sub) output ports
4
VGA (D-Sub) input ports
1
Video port type
VGA
Video out
1 x HDB-15 Female (Blue)
Video in
4 x HDB-15 Female (Blue)
VGA (D-Sub) ports quantity
5
DC-in jack
Yes
Features
Rack capacity
1U
Output impedance
75 Ω
Input impedance
75 Ω
Product colour
Silver
Rack mounting
Yes
Maximum resolution
1920 x 1440 pixels
Maximum operating distance
10 m
Material
Metal, Plastic
Bandwidth
150 MHz
Power
Power consumption (typical)
1.35 W
Weight & dimensions
Width
120 mm
Height
44 mm
Depth
65.2 mm
Weight
180 g
Technical details
VGA (D-Sub) output ports
4
Rack capacity
1U
Output impedance
75 Ω
Input impedance
75 Ω
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 80%
Width
120 mm
Height
44 mm
Depth
65.2 mm
Product colour
Silver
Video port type
VGA
Video out
1 x HDB-15 Female (Blue)
Video in
4 x HDB-15 Female (Blue)
Rack mounting
Yes
Maximum resolution
1920 x 1440 pixels
Maximum operating distance
10 m
Material
Metal, Plastic
Bandwidth
150 MHz
Compliance certificates
RoHS
Packaging content
AC adapter included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 80%
ATEN VS491 video switch VGA
| Length | 6.52 cm |
| Width | 12 cm |
| Height | 4.4 cm |
| Weight | 0.18 kgs |
