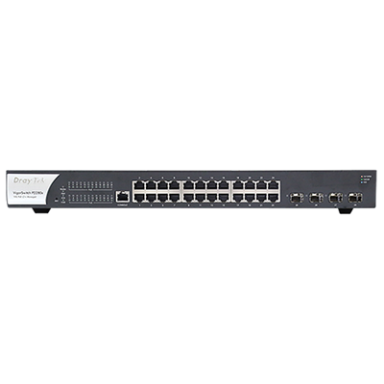

Draytek Layer 3 managed switch with 24 ports PoE+ Ports + 4 10 Gb/s SFP Ports
0 Reviews
| Add your review
In Stock
|
£391.62
£469.94 (Inc. VAT)
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Installed SFP modules quantity | 4 |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Access Control List (ACL) IPv6 entries | 512 |
| Access Control List (ACL) IPv4 entries | 512 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 1000 |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 256 |
| Multicast Listener Discovery (MLD) snooping | V1/V2 |
| Jumbo frames | 12 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 41.7 Mpps |
| IPv4 & IPv6 features | |
| Access Control List (ACL) IPv6 entries | 512 |
| Access Control List (ACL) IPv4 entries | 512 |
| Performance | |
| Packet buffer memory | 12 MB |
| Auto-negotiation | Yes |
| Fanless | No |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| Authentication | Guest VLAN |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS- TACACS+ |
| Access Control List (ACL) IPv6 entries | 512 |
| Access Control List (ACL) IPv4 entries | 512 |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | V1/V2 |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | VRRP |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Memory | |
| Packet buffer memory | 12 MB |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power consumption (max) | 480 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1423.81 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 270 mm |
| Height | 45 mm |
| Weight | 4.32 kg |
