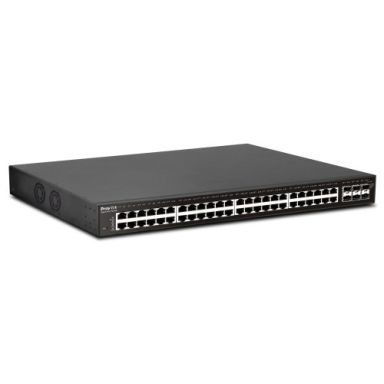

Draytek VSP2540XS-K network switch Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet
0 Reviews
| Add your review
In Stock
|
£688.80
£826.56 (Inc. VAT)
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+/L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Installed SFP+ modules quantity | 6 |
| Fiber ports quantity | 6 |
| Fiber optic connector | LC |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Number of VLANs | 256 |
| Jumbo frames | 12 |
| MAC address table | 32 entries |
| Switching capacity | 216 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 160.7 Mpps |
| Optical fiber | |
| Fiber optic connector | LC |
| Performance | |
| Auto-negotiation | Yes |
| Firmware upgradeable | Yes |
| Fanless | No |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | VRRP |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Error- PoE |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Indication | |
| LED indicators | Error- PoE |
| Power | |
| Power consumption (max) | 478 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Input current | 5.5 A |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1631.18 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 330 mm |
| Height | 45 mm |
| Weight | 5.66 kg |
