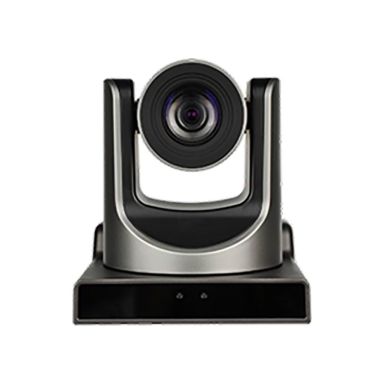

EDIS VX60L 8.42 MP Black, Silver 3840 x 2160 pixels 60 fps CMOS 25.4 / 1.8 mm (1 / 1.8")
In Stock
|
$863.67
$1036.40 (Inc. VAT)
Camera
Megapixel
8.42 MP
Sensor type
CMOS
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Optical zoom
20x
Digital zoom
16x
Focal length range
6.7 - 125 mm
Minimum illumination
0.5 lx
White balance
Auto, Indoor, Manual, One push, Outdoor
Horizontal field of view
60°
Signal-to-Noise Ratio (SNR)
55 dB
Noise reduction
Yes
Ethernet LAN data rates
10,100 Mbit/s
Aperture range (F-F)
1.58 - 3.95
Number of camera presets
255
3D NR (Noise Reduction)
Yes
Video
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
60 fps
Supported video modes
720p,1080p,2160p
Video formats supported
H.264,H.265,M-JPEG,YUY2
Supported graphics resolutions
320 x 240,720 x 480,720 x 576,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),3860 x 2160
HD type
4K Ultra HD
Design
Product colour
Black, Silver
Tilt speed (min)
1.7 °/sec
Tilt speed (max)
69.9 °/sec
Pan speed (min)
1.7 °/sec
Pan speed (max)
100 °/sec
Ports & interfaces
HDMI ports quantity
1
BNC output ports
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
RS-232 input ports
1
RS-232 output ports
1
3G-SDI output
Yes
Microphone in
Yes
HDMI version
2.0
RS-485 ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Power
DC input voltage
12 V
Power source type
DC
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Storage temperature (T-T)
-40 - 60 °C
System requirements
Windows operating systems supported
Windows 10,Windows 7,Windows 8
Mac operating systems supported
Yes
Audio
Noise reduction
Yes
Automatic gain control
Yes
Protocols
Supported network protocols
NDI|HX, NDI|HX2, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP
Network
Ethernet LAN data rates
10,100 Mbit/s
Supported network protocols
NDI|HX, NDI|HX2, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP
Packaging content
Handheld remote control
Yes
Cables included
AC
AC adapter included
Yes
Weight & dimensions
Width
165 mm
Depth
142 mm
Height
164 mm
Weight
1.35 kg
EDIS VX60L 8.42 MP Black, Silver 3840 x 2160 pixels 60 fps CMOS 25.4 / 1.8 mm (1 / 1.8")
