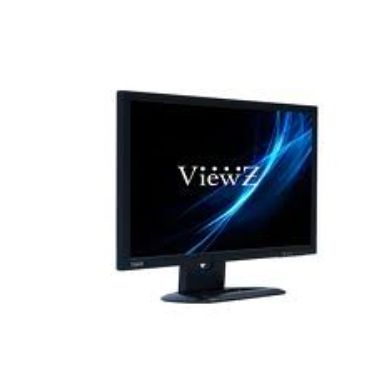

ViewZ VZ-15RCR signage display Digital signage flat panel 15" LCD XGA Black
In Stock
|
Call For Price
(0808 189 1246)
Display
Display number of colours
16.78 million colors
Touchscreen
No
Display type
LCD
Display diagonal
15"
Display resolution
1024 x 768 pixels
Display brightness
225 cd/m²
HD type
XGA
Response time
8 ms
Contrast ratio (typical)
25.000694444444
Viewing angle horizontal
160°
Viewing angle vertical
140°
Pixel pitch
0.0117 x 0.0117" (0.297 x 0.297 mm)
Vertical scan range
56 - 75 Hz
Horizontal scan range
31 - 48 kHz
Ports & interfaces
USB port
No
Ethernet LAN
No
DVI port
No
VGA (D-Sub) input ports
1
Composite video in
2
S-Video in
Yes
Composite video out
2
S-Video out
Yes
Audio
Number of built-in speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Design
Design
Digital signage flat panel
Product colour
Black
Panel mounting interface
100 x 100 mm
Certification
UL CB FCC(B) CE-Emc(LVD)
VESA mounting
Yes
Performance
Mean time between failures (MTBF)
50000 h
Multi-display supported
No
Analog signal format system
NTSCPAL
On Screen Display (OSD)
Yes
Number of OSD languages
7
Power
Power consumption (typical)
36 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Computer system
Computer system
No
Weight & dimensions
Width
18.9" (481 mm)
Depth
2.95" (75 mm)
Height
11.4" (289 mm)
Weight
10.6 lbs (4.8 kg)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
UL CB FCC(B) CE-Emc(LVD)
Technical details
VESA mounting
Yes
Sustainability certificates
RoHS
Other features
Mean time between failures (MTBF)
50000 h
S-Video in
Yes
S-Video out
Yes
ViewZ VZ-15RCR signage display Digital signage flat panel 15" LCD XGA Black
| Length | 7.50 cm |
| Width | 48.10 cm |
| Height | 28.90 cm |
| Weight | 4.810000 kgs |
