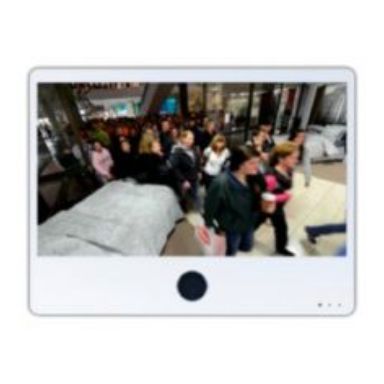

ViewZ 23" IP Public View Monitor with Ethernet (White)
In Stock
|
Call For Price
(0808 189 1246)
Display
Screen Size
23" (58 cm)
Maximum Resolution
1920 x 1080 60 Hz
Pixel Pitch
0.265 x 0.2655 mm
Brightness
250 cd/m² (Typical)
Contrast Ratio
41.667361111111
Aspect Ratio
0.67291666666667
Viewing Angle
160°/160°
Display Colors
16.7 million
Response Time
Video System
NTSC / PAL
Frequency
31 - 80 KHz / 56 - 75 Hz
Inputs
1x Composite on BNC
1x DVI
Outputs
1x Composite on BNC
1x Composite camera out on BNC (at 720 x 480)
Filter Type
3D Comb-filter / De-Interlace
Video Resolution
600 TV Lines (max)
VESA Mount
200 x 200 mm
Compatible ViewZ Mounts
Wall: VZ-AM02 VZ-WM50
Ceiling: VZ-CMK01 VZ-CMK02 VZ-CMK03
Camera
Megapixel IP Camera
Panasonic 2.1 Megapixel CMOS image sensor
DC Auto Iris 3.6 - 16 mm varifocal lens
Power
Dual Voltage:
Electrical Ratings: 110 V AC (50/60 Hz) / 24 V DC
Consumption: 0.6 A (66 W) / 2.8 A (66 W)
MTBF
Approx. 50000 hours
Regulations
TUV-NRTL (=UL) FCC(A)
Operating Temperature
32 to 104°F (0 to 40°C)
Dimensions
21 x 16.2 x 3.3" (53 x 41 x 8.4 cm)
Weight
22 lb (10 kg)
Packaging Info
Package Weight
27 lb
Box Dimensions (LxWxH)
28 x 23 x 8"
ViewZ 23" IP Public View Monitor with Ethernet (White)
| Length | 28 cm |
| Width | 8 cm |
| Height | 23 cm |
| Weight | 1.000000 kgs |
