Display | |
---|---|
Screen Size | 23" (58.42 cm) |
Maximum Resolution | 1920 x 1080 60 Hz |
Pixel Pitch | 0.2655 x 0.2655 mm |
Brightness | 250 cd/m² (typical) |
Contrast Ratio | 41.667361111111 |
Aspect Ratio | 0.67291666666667 |
Viewing Angle (H/V) | 160°/160° |
Display Color | 16.7 million |
Response Time | <5 ms |
Video System | NTSC / PAL |
Frequency | Horizontal: 31 to 80 kHz |
Interface | |
Composite | AV: 1 x in 1 x out |
Camera Out | 1 |
DVI Input | 1 |
HDMI In | 2 |
RGB Input | 1 x 15-pin D-Sub |
Composite | AV Sound: 1 x in 1 x out (RCA type) |
PC Stereo In | 1 |
Speaker Out | 1 |
Special Features | |
Function | Multi Display: PIP / PBP / VOV |
Filter Type | 3D comb-filter / de-interlace |
Video Resolution | Maximum 600 TVL |
Camera Mounting Hole | 3 (top left right) |
Mount | |
VESA Compatibility | 200 x 200 mm |
Camera | |
Sensor Type | 1/3" Panasonic 1.3 MP CMOS sensor |
Lens | 2.8 to 12 mm varifocal lens DC auto iris |
Active Pixels | 1280(H) x 720p(V) |
Video Out | 1-channel CVBS (NTSC/PAL) |
Motion Detection | Supported |
Minimum Illumination | 0.5 lux 50 IRE f/1.2 |
General | |
Power Consumption | Dual Voltage: |
Operating Temperature | 32 to 104°F (0 to 40°C) |
MTBF | Approximately 50000 hours |
Regulations | UL listed FCC RoHS |
Compatible Mounts | Wall: VZ-WM05 VZ-WM11 VZ-AM01 |
Dimensions (W x H x D) | 21.25 x 16.18 x 3.27" (539.8 x 411 x 83 mm) |
Weight | 21.67 lb (9.83 kg) |
Packaging Info | |
Package Weight | 27 lb |
Box Dimensions (LxWxH) | 28 x 23 x 8" |

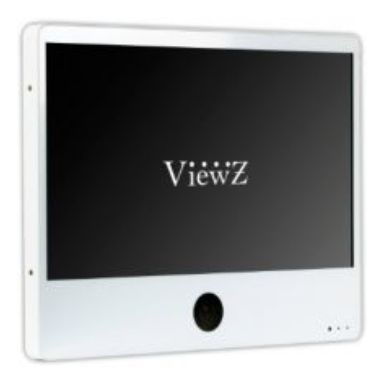

ViewZ VZ-PVM-Z2W3 23" Full HD Widescreen LED Backlit Monitor with Built-In 1.3MP Camera (White)
Length | 28 cm |
Width | 8 cm |
Height | 23 cm |
Weight | 1.000000 kgs |
