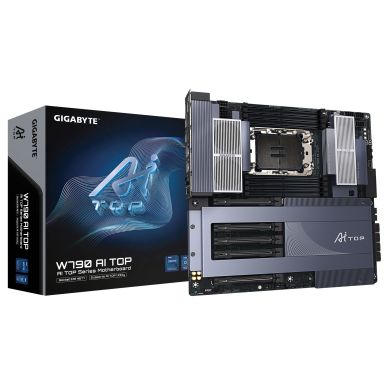

GIGABYTE W790 AI TOP Motherboard - Supports Intel Xeon CPUs, 16+2+2 phases VRM

Number of M.2 (M) slots

6

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Number of SATA III connectors

8

Number of chassis fan connectors

6

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2x2 connectors

1

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

4

Number of water pump connectors

1

Number of temperature sensor headers

2

Number of RGB LED pin headers

4

Motherboard chipset family

Intel

Motherboard chipset

Intel W790

Trusted Platform Module (TPM)

Yes

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Parallel processing technology support

Not supported

Motherboard form factor

Extended ATX

Component for

Server

Warranty period

3 year(s)

Audio output channels

7.1 channels

Number of HDDs supported

8

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel W790

RAID levels

0, 1, 5, 10

Trusted Platform Module (TPM)

Yes

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

Component for

Server

Audio connector

Yes

Processor manufacturer

Intel

Compatible processor series

Intel® Xeon®

Intel Xeon series

W-2400, W-3400, W3500, W-2500

Processor socket

LGA 4677 (Socket E)

Number of memory slots

8

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Octa-channel

Supported memory clock speeds

4800,5600 MHz

Maximum internal memory

2 TB

Maximum RDIMM memory

256 GB

Supported memory clock speed (max)

5600 MHz

ECC сompatibility

ECC

Number of HDDs supported

8

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

14

RAID support

Yes

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

0

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

Thunderbolt ports quantity

2

S/PDIF out port

Yes

Headphone outputs

1

HDMI ports quantity

0

Ethernet LAN (RJ-45) ports

2

DVI-D ports quantity

0

DisplayPorts quantity

2

Digital audio optical out

1

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

LAN controller

Intel X710-AT2

Ethernet interface type

10 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Intel Wi-Fi 7 BE200

Power source type

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel W790

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

Component for

Server

Audio chip

Realtek ALC897

Product colour

Black

Number of M.2 (M) slots

6

PCI Express x16 (Gen 5.x) slots

5

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

5.0

5th M.2 largest key size

2280

5th M.2 highest PCI Express generation

4.0

6th M.2 largest key size

2280

6th M.2 highest PCI Express generation

4.0

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

512 Mbit

ACPI version

5.0

System Management BIOS (SMBIOS) version

2.7

Desktop Management Interface (DMI) version

2.7

Power source type

ATX

Trusted Platform Module (TPM)

Yes

Package width

363 mm

Package depth

383 mm

Package height

93 mm

Package weight

5.7 kg

Windows operating systems supported

Windows 11 x64

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery weight

3 g

Number of battery cells

1

Lithium weight per battery

0.07 g

Battery type

CR2032

Products per shipping (inner) case

1 pc(s)

Country of origin

Taiwan

Height

35 mm

Package width

363 mm

Package depth

383 mm

Package height

93 mm

Package weight

5.7 kg

Weight

4.87 kg

Width

305 mm

Depth

330 mm

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Height

35 mm

Package width

363 mm

Package depth

383 mm

Package height

93 mm

Package weight

5.7 kg

Weight

4.87 kg

Intel Xeon series

W-2400, W-3400, W3500, W-2500
