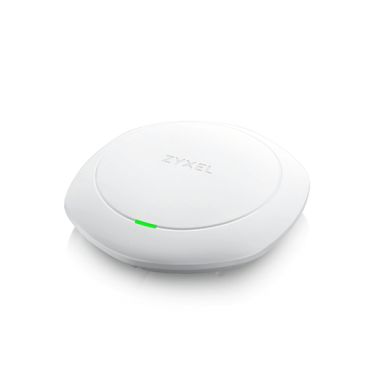

Zyxel WAC6303D-S-EU0101F 1300 Mbit/s White Power over Ethernet (PoE)
In Stock
|
£208.37
£250.04 (Inc. VAT)
Data transmission
Wi-Fi data rate (max)
1300 Mbit/s
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1300 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Wi-Fi data rate (max)
1300 Mbit/s
VLAN support
Yes
Receiver sensitivity
-103 dBm
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3au-IEEE 802.3az-IEEE 802.3u
Modulation
16-QAM-64-QAM-256-QAM-BPSK-CCK-DBPSK-DBQSK-QPSK
Ethernet LAN data rates
10-100-1000 Mbit/s
Channel bandwidth
80 MHz
Maximum data transfer rate
1300 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Wireless LAN features
Modulation
16-QAM-64-QAM-256-QAM-BPSK-CCK-DBPSK-DBQSK-QPSK
Network
Internal
No
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3au-IEEE 802.3az-IEEE 802.3u
Bandwidth
Channel bandwidth
80 MHz
Security
Cable lock slot
Yes
Number of SSID supported
16
Security algorithms
802.1x RADIUS-WPA-WPA-Enterprise-WPA2-WPA2-Enterprise-WPA2-PSK
MAC address filtering
Yes
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Features
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Wi-Fi data rate (max)
1300 Mbit/s
VLAN support
Yes
Receiver sensitivity
-103 dBm
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3au-IEEE 802.3az-IEEE 802.3u
Modulation
16-QAM-64-QAM-256-QAM-BPSK-CCK-DBPSK-DBQSK-QPSK
Ethernet LAN data rates
10-100-1000 Mbit/s
Channel bandwidth
80 MHz
Maximum data transfer rate
1300 Mbit/s
Maximum Likelihood Detection (MLD)
Yes
Maximal-Ratio Combining (MRC)
Yes
Cyclic Shift Diversity (CSD)
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Throughput data rate
1600 Mbit/s
Protocols
Management protocols
SNMP v2c/v3
DHCP client
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
Output voltage
12 V
Output current
2 A
Power over Ethernet (PoE)
Yes
Input voltage
100 - 240 V
Input frequency
50/60 Hz
Design
Placement
Ceiling-Wall
Product colour
White
Internal
No
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Antenna gain level (max)
4 dBi
Technical details
Receiver sensitivity
-103 dBm
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Software
Maximum Likelihood Detection (MLD)
Yes
Maximal-Ratio Combining (MRC)
Yes
Cyclic Shift Diversity (CSD)
Yes
Weight & dimensions
Width
211 mm
Depth
223 mm
Weight
800 g
Height
39 mm
Package width
251 mm
Package depth
247 mm
Package height
55 mm
Package weight
1.04 kg
Packaging data
Mounting kit
Yes
Package width
251 mm
Package depth
247 mm
Package height
55 mm
Package weight
1.04 kg
Packaging content
Mounting kit
Yes
Zyxel WAC6303D-S-EU0101F 1300 Mbit/s White Power over Ethernet (PoE)
