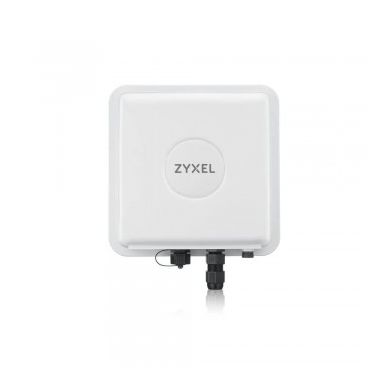

Zyxel WAC6552D-S-EU0101F Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Auto Wireless Distribution System (WDS)
Yes
Transmitting power
28 dBmW
Frequency band
2.412-2.462 (USA FCC); 2.412-2.472 (ETSI); 5.15-5.35- 5.725-585 (USA FCC); 5.15-5.35- 5.47-5.725 (ETSI)
Web-based management
Yes
VLAN support
Yes
Receiver sensitivity
-101 dBm
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11k-IEEE 802.11n-IEEE 802.11r-IEEE 802.11v-IEEE 802.1x-IEEE 802.3at
Ethernet LAN data rates
10-100-1000 Mbit/s
Channel bandwidth
80 MHz
Certification
FCC 15C- FCC 15E- ETSI EN 300 328- EN 301 893- LP0002- FCC 15B- EN 301 489-1- EN 301 489-17- EN55022- EN55024- EN61000-3-2/-3- EN60601-1-2- BSMI CNS13438- EN 60950-1- IEC 60950-1- BSMI CNS14336-1
MIMO
Yes
Band steering
Yes
Wireless LAN features
Frequency band
2.412-2.462 (USA FCC); 2.412-2.472 (ETSI); 5.15-5.35- 5.725-585 (USA FCC); 5.15-5.35- 5.47-5.725 (ETSI)
Network
Internal
No
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11k-IEEE 802.11n-IEEE 802.11r-IEEE 802.11v-IEEE 802.1x-IEEE 802.3at
Bandwidth
Channel bandwidth
80 MHz
Management features
VLAN support
Yes
Web-based management
Yes
Certificates
Certification
FCC 15C- FCC 15E- ETSI EN 300 328- EN 301 893- LP0002- FCC 15B- EN 301 489-1- EN 301 489-17- EN55022- EN55024- EN61000-3-2/-3- EN60601-1-2- BSMI CNS13438- EN 60950-1- IEC 60950-1- BSMI CNS14336-1
Features
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Transmitting power
28 dBmW
Frequency band
2.412-2.462 (USA FCC); 2.412-2.472 (ETSI); 5.15-5.35- 5.725-585 (USA FCC); 5.15-5.35- 5.47-5.725 (ETSI)
VLAN support
Yes
Receiver sensitivity
-101 dBm
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11k-IEEE 802.11n-IEEE 802.11r-IEEE 802.11v-IEEE 802.1x-IEEE 802.3at
Ethernet LAN data rates
10-100-1000 Mbit/s
Channel bandwidth
80 MHz
Fast roaming
Yes
MIMO
Yes
Band steering
Yes
Maximum data transfer rate (5 GHz)
867 Mbit/s
Fit AP mode features
802.11k & 802.11v smart roaming- Mesh networking
Security
Auto Wireless Distribution System (WDS)
Yes
Security algorithms
802.1x RADIUS-EAP-WEP-WPA-WPA2-Enterprise-WPA2-PSK
MAC address filtering
Yes
Protocols
Supported network protocols
IPv6- SNMP
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power over Ethernet (PoE)
Yes
Design
International Protection (IP) code
IP67
Placement
Pole
Product colour
White
Internal
No
Certification
FCC 15C- FCC 15E- ETSI EN 300 328- EN 301 893- LP0002- FCC 15B- EN 301 489-1- EN 301 489-17- EN55022- EN55024- EN61000-3-2/-3- EN60601-1-2- BSMI CNS13438- EN 60950-1- IEC 60950-1- BSMI CNS14336-1
Antenna
Antenna gain level (max)
10 dBi
Technical details
Transmitting power
28 dBmW
Receiver sensitivity
-101 dBm
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Software
Fast roaming
Yes
Weight & dimensions
Width
255 mm
Depth
256 mm
Weight
1.59 kg
Height
66 mm
Packaging data
Mounting kit
Yes
Packaging content
Mounting kit
Yes
Zyxel WAC6552D-S-EU0101F Power over Ethernet (PoE)
| Length | 25.60 cm |
| Width | 25.50 cm |
| Height | 6.60 cm |
| Weight | 1.590000 kgs |
