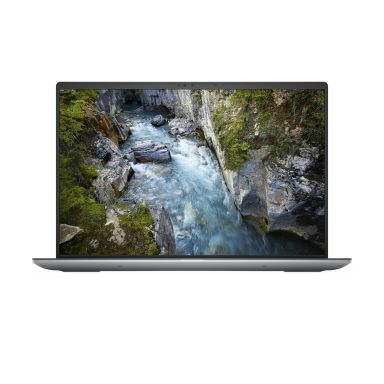

DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 1000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro Grey

In StockIn Stock
Brand:Dell
SKU:WM34N
GTIN:5397184805619
Condition:NEW
Product Type:Computers
Boost your cart to £100 and cut your handling fee--don't miss out!
Call For Price (0808 189 1246)
Design
Product type
Mobile workstation
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Intel® vPro™ Platform Eligibility
Yes
Display
HD type
Full HD+
Pixel density
142 ppi
Panel type
IPS
LED backlight
Yes
Display brightness
500 cd/m²
Contrast ratio (typical)
1300:1
Touchscreen
No
Display resolution
1920 x 1200 pixels
Display diagonal
40.6 cm (16")
Anti-glare screen
Yes
Maximum refresh rate
60 Hz
RGB colour space
DCI-P3
Colour gamut
100%
Native aspect ratio
16:10
Processor
Processor generation
Intel® Core™ Ultra (Series 1)
Processor cache type
Smart Cache
Processor cache
24 MB
Processor model
165H
Processor boost frequency
5 GHz
Processor cores
16
Processor threads
22
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor base power
28 W
Maximum turbo power
115 W
Efficient-core base frequency
0.9 GHz
Performance-core base frequency
1.4 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Performance-core Max Turbo Frequency
5 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-core Base Frequency
700 MHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Low Power Efficient-cores
2
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, FP32, Int8
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Memory form factor
On-board
Internal memory
16 GB
Internal memory type
LPDDR5x-SDRAM
Memory channels
Dual-channel
Memory data transfer rate
7467 MT/s
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
Total storage capacity
1 TB
Total SSDs capacity
1 TB
SSD performance class
40
NVMe
Yes
M.2 SSD size
2280 (22 x 80 mm)
Graphics
Discrete graphics card
Yes
Discrete graphics card memory
6 GB
On-board graphics card family
Intel Arc Graphics
On-board graphics card
Yes
On-board graphics card model
Intel Arc Graphics
Discrete graphics card model
NVIDIA RTX 1000 Ada
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
Audio
Number of microphones
2
Number of built-in speakers
4
Speakers manufacturer
Waves
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
2.07 MP
Front camera resolution
1920 x 1080 pixels
Video capturing speed
30 fps
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller model
Intel Wi-Fi 7 BE200
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
USB 2.0 ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
Combo headphone/mic port
Yes
USB Power Delivery (USB PD)
Yes
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Performance
Gyroscope
Yes
Proximity sensor
Yes
Ambient light sensor
Yes
Accelerometer
Yes
Hall sensor
Yes
Keyboard
Pointing device
Touchpad
Numeric keypad
No
Keyboard backlit
Yes
Keyboard language
UK English
Copilot key
Yes
Software
Operating system language
German, Dutch, English, French, Italian
Operating system architecture
64-bit
Trial software
No Microsoft Office Licence Included - 30 day Trial Offer Only
Operating system installed
Windows 11 Pro
Technical details
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Discrete graphics card memory
6 GB
Processor special features
Intel® vPro™ Platform Eligibility
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery capacity
99.5 Wh
Battery recharge time
3 h
Battery voltage
11.55 V
Fast charging
Yes
Battery charge indicator
Yes
Battery weight
363 g
Power
AC adapter power
165 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
USB Power Delivery (USB PD)
Yes
Security
Password protection
Yes
Cable lock slot type
Wedge
Trusted Platform Module (TPM)
Yes
Fingerprint reader
Yes
Cable lock slot
Yes
Trusted Platform Module (TPM) version
2.0
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Sustainability
Total carbon footprint (kg of CO2e)
246
Weight & dimensions
Width
353.7 mm
Depth
240.3 mm
Height (front)
2.05 cm
Height (rear)
2.22 cm
Weight
2.03 kg
Packaging data
Cables included
AC
Other features
Ambient light sensor
Yes
WLAN controller model
Intel Wi-Fi 7 BE200
On-board graphics card
Yes
Anti-glare screen
Yes
Sensors
Proximity sensor
Yes
Ambient light sensor
Yes
Accelerometer
Yes
Carbon footprint
Total carbon footprint (kg of CO2e)
246
Total carbon emissions, w/o use phase (kg of CO2e)
210.084
PAIA version
GaBi version 1, 2024
Carbon emissions, energy usage (kg of CO2e)
35.916
Carbon emissions, manufacturing (kg of CO2e)
200.49
Carbon emissions, logistics (kg of CO2e)
6.888
Carbon emissions, end-of-life (kg of CO2e)
2.46
Packaging content
Cables included
AC

DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 1000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro Grey

Combining uncompromising performance in a sleek, portable package. Blending high-end processing power, advanced graphics, and enterprise-ready features, DELL Precision 5690 Core Ultra 7 165H UK is a professional-grade mobile workstation designed for engineers, creative professionals, designers, developers, and business users.

Key Specs of DELL Precision 5690 WM34N UK:

  • Operating System: Win-11 Pro - Dutch / English / French / German / Italian

  • Platform Technology: Intel vPro Enterprise

  • Processor: Intel Core Ultra 7 (Series 1) - 165H / 1.4 GHz, up to 5 GHz / 24 MB Cache

  • Neural Processor Unit (NPU): Intel AI Boost

  • Memory: 16 GB LPDDR5X (provided memory is soldered)

  • Storage: 1 TB SSD - NVMe, Class 40

  • Display: 16" 1920 x 1200 / Full HD Plus @ 60 Hz - 142 ppi

  • Graphics: NVIDIA RTX 1000 ADA

  • Video Memory: 6 GB GDDR6 SDRAM

  • Input Device: Keyboard, touchpad

  • Networking: Bluetooth, 802.11a/b/g/n/ac/ax/be

  • Battery: 6-cell

  • Features: Accelerometer, ambient light sensor, hall sensor, infrared proximity sensor

  • Security: Discrete Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader, smart card reader

  • Colour: Grey

The detailed breakdown of Precision 5690 NVIDIA RTX 1000 Ada UK is given below.

Intel Core Ultra 7 165H Laptop UK:

DELL Precision 5690 WM34N UK is provided with AI-empowered Intel Core Ultra 7 (Series 1) - 165H, supporting 1.4 GHz, up to 5 GHz / 24 MB Cache, delivering multi-threaded throughput with efficient power use. It makes DELL Precision 5690 WM34N UK suitable for CAD, 3D modelling, software development, scientific computing, and multitasking across demanding applications.

Professional-Grade Graphics:

Precision 5690 NVIDIA RTX 1000 Ada UK features an RTX 1000 Ada graphics card, supporting reliable acceleration for graphics-enhanced workloads, including 3D rendering, visualization, animation, and GPU-assisted compute tasks. You can thus use the DELL WM34N workstation UK for demanding tasks, including 2D,3D design, content creation, photo, video, and audio editing, web, and graphic designs.

Immersive Display & Visual Performance:

The Precision 5690 Full HD+ Windows 11 Pro UK is equipped with an expansive 16:10 display with up to UHD+ OLED, DCI-P3 100%, up to 500nits brightness, and PremierColour. It also features ComfortView Plus options to reduce blue light emissions, allowing users to enjoy a comfortable viewing experience.

Next-Generation Connectivity:

Precision 5690 RTX 1000 UK is provided with Bluetooth, 802.11a/b/g/n/ac/ax/be, and Intel WI-FI 7 BE200 WLAN support, helping users enjoy improved throughput and more reliable connections in dense network environments.

Plus, it also comes with the HDMI USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) 2 x USB4 (supports Thunderbolt 4, DisplayPort 1.4 Alt Mode) (Power Delivery) Headphone/microphone combo jack, allowing users enjoy seamless connection and faster data transfer rate.

Cutting-edge Audio and Video Features:

This high-end mobile workstation UK features 2.07 Megapixel (standard), featuring 1920 x 1080 (standard), 640 x 360 (infrared) resolution, 30 frames per second, and HDR (High Dynamic Range), privacy shutter, IR/RGB camera, Temporal Noise Reduction, 80 degrees, Express Sign-In, 80.6 degrees (IR camera).

It is also equipped with two tweeters, two woofers, and a dual array microphone, allowing users to enjoy an immersive audio experience.

Length24.03 cm
Width35.37 cm
Height2.05 cm
Weight3.45 kgs
