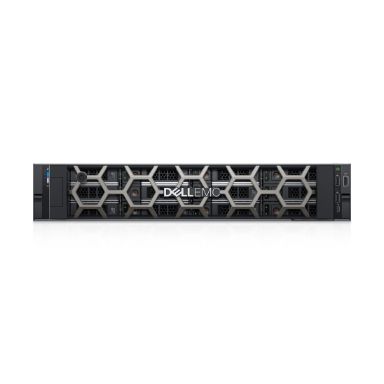

DELL PowerEdge R540 server 2.4 GHz 16 GB Rack (2U) Intel Xeon Silver 750 W DDR4-SDRAM
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 100 W |
| Tcase | 84 °C |
| Supported instruction sets | SSE4.2-AVX-AVX 2.0-AVX-512 |
| Scalability | 2S |
| Processor threads | 20 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cascade Lake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 1024 GB |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| Processor cache | 13.75 MB |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.2 GHz |
| Number of processors installed | 1 |
| Processor model | 4210R |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 10 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 16 x RDIMM |
| Memory clock speed | 3200 MHz |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Storage | |
| Supported RAID controllers | PERC H330 |
| Total storage capacity | 480 GB |
| Supported HDD sizes | 3.5" |
| SSD interface | Serial ATA III |
| SSD capacity | 480 GB |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| Number of HDDs supported | 8 |
| Hot-Plug support | Yes |
| SSD size | 2.5" |
| Graphics | |
| On-board graphics adapter model | Not available |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack rails | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Product colour | Black |
| Performance | |
| Compatible operating systems | - Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi |
| Remote administration | iDRAC9 Express |
| Operating system installed | No |
| Software | |
| Compatible operating systems | - Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 197098 |
| Power | |
| Number of redundant power supplies installed | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Supported HDD sizes | 3.5" |
| Rack rails | Yes |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (2U) |
| Management features | |
| Remote administration | iDRAC9 Express |
| Weight & dimensions | |
| Height | 86.8 mm |
| Packaging content | |
| Cables included | AC |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
DELL PowerEdge R540 server 2.4 GHz 16 GB Rack (2U) Intel Xeon Silver 750 W DDR4-SDRAM
