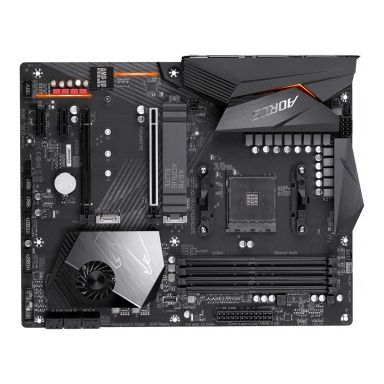

Gigabyte X570 AORUS ELITE (rev. 1.0) motherboard Socket AM4 ATX AMD X570
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
PC health monitoring
Fan- Temperature- Voltage
Parallel processing technology support
2-Way CrossFireX-Quad-GPU CrossFireX
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
5.1 channels
Performance
Windows operating systems supported
Yes
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
RAID levels
0-1-10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
5.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
2nd Generation AMD Ryzen⢠3- AMD Ryzen 3 3rd Gen- 2nd Generation AMD Ryzen⢠5- 3rd Generation AMD Ryzen 5- 2nd Generation AMD Ryzen⢠7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2667-2933-3200-3300-3333-3400-3466-3600-3733-3800-3866-4000 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-10
Graphics
Parallel processing technology support
2-Way CrossFireX-Quad-GPU CrossFireX
Maximum resolution
4096 x 2160 pixels
Internal I/O
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
6
Number of chassis fan connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
4
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Yes
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
5.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion slots
PCI Express x16 slots
2
PCI Express x1 slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
Video
Maximum resolution
4096 x 2160 pixels
Software
Windows operating systems supported
Yes
Bundled software
Norton® Internet Security (OEM version) cFosSpeed
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version) cFosSpeed
Gigabyte X570 AORUS ELITE (rev. 1.0) motherboard Socket AM4 ATX AMD X570
