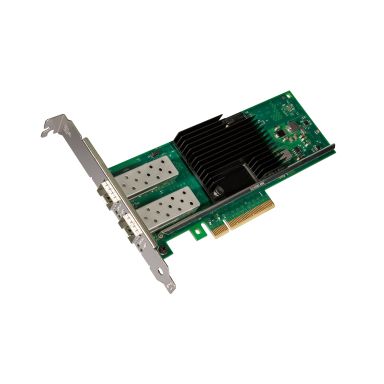

Intel X710DA2 network card Internal Fiber 10000 Mbit/s
In Stock
|
$252.93
$303.52 (Inc. VAT)
Ports & interfaces
Internal
Yes
PCI version
3.0
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
2
PCI Card form factor
Full-height (low-profile)
Interface
Fiber
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Maximum data transfer rate
10000 Mbit/s
Network
Chipset
X710-AM2
VLAN tagging
Yes
Ethernet LAN
Yes
Networking standards
IEEE 802.1as- IEEE 802.1p- IEEE 802.1Q- IEEE 802.3- IEEE 802.3ad
Supported network protocols
TCP- UDP- IP
Maximum operating distance
10 m
LAN controller
Intel® X710
Fiber ethernet cabling technology
10GBASE-LR- 10GBASE-SR
Ethernet LAN data rates
10-1000 Mbit/s
Maximum data transfer rate
10000 Mbit/s
Management protocols
PXE- SNMP- RMON
Flow control support
Yes
Technical details
Interface type
PCIe v3.0 (8.0 GT/s)
Product colour
Black- Green
Storage-over-ethernet
Yes
Speed & slot width
8.0 GT/s- x8 Lane
PCI-SIG* SR-IOV Capable
Yes
PCI Card form factor
Full-height (low-profile)
On-chip QoS and Traffic Management
Yes
Number of VLANs
4096
Message signal interrupt
No
Low halogen options available
No
iWARP/RDMA
No
Intelligent Offloads
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Intel® Virtualization Technology (Intel® VT)
VT-c
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Trusted Execution Technology
No
Intel Flexible Port Partitioning
Yes
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
Yes
Fiber Channel over Ethernet
Yes
Embedded options available
No
Storage Over Ethernet
iSCSI- NFS
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Product type
Network Interface Card
Number of QPI links
Dual
Processor family
700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Status
Launched
Product name
Intel Ethernet Converged Network Adapter X710-DA2
Product brief URL
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-x710-brief.pdf
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Launch date
Q4'14
Born on date
Q4'14
Last change
64826824
Design
Product colour
Black- Green
Chipset
X710-AM2
Certification
FCC B- UL- CE- VCCI- BSMI- CTICK- KCC
Internal
Yes
PCI Card form factor
Full-height (low-profile)
LED indicators
Yes
Conflict-Free
Yes
Product family
Intel 10 Gigabit server adapter
Product series
700 Series Network Adapters (up to 40GbE)
Product codename
Fortville
Software
Linux operating systems supported
RedHat EL Linux 6.0
Other operating systems supported
FreeBSD
Power
Power consumption (typical)
4.5 W
Indication
LED indicators
Yes
System requirements
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2
Linux operating systems supported
RedHat EL Linux 6.0
Other operating systems supported
FreeBSD
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
35 - 90%
Weight & dimensions
Width
68.6 mm
Depth
167.1 mm
Protocols
Supported network protocols
TCP- UDP- IP
Management protocols
PXE- SNMP- RMON
Performance
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2
Conflict-Free
Yes
Ethernet adapter ARK ID
83964
Linux operating systems supported
RedHat EL Linux 6.0
Other operating systems supported
FreeBSD
Storage-over-ethernet
Yes
Speed & slot width
8.0 GT/s- x8 Lane
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Number of VLANs
4096
iWARP/RDMA
No
Intelligent Offloads
Yes
Intel® Virtualization Technology (Intel® VT)
VT-c
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Flexible Port Partitioning
Yes
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
Yes
Fiber Channel over Ethernet
Yes
Certificates
Certification
FCC B- UL- CE- VCCI- BSMI- CTICK- KCC
Other features
Chipset
X710-AM2
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Conflict-Free
Yes
Product type
Network Interface Card
Number of QPI links
Dual
Processor family
700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Ethernet adapter ARK ID
83964
Interface type
PCIe v3.0 (8.0 GT/s)
Cable type
SFP+ Direct Attached Twinaxial Cabling up to 10m
Storage-over-ethernet
Yes
Speed & slot width
8.0 GT/s- x8 Lane
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Number of VLANs
4096
Message signal interrupt
No
Management protocols
PXE- SNMP- RMON
Low halogen options available
No
iWARP/RDMA
No
Intelligent Offloads
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Intel® Virtualization Technology (Intel® VT)
VT-c
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Trusted Execution Technology
No
Intel Flexible Port Partitioning
Yes
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
Yes
Flow control support
Yes
Fiber Channel over Ethernet
Yes
Embedded options available
No
Storage Over Ethernet
iSCSI- NFS
Status
Launched
Product name
Intel Ethernet Converged Network Adapter X710-DA2
Product brief URL
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-x710-brief.pdf
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Launch date
Q4'14
Born on date
Q4'14
Last change
64826824
Product family
Intel 10 Gigabit server adapter
Product series
700 Series Network Adapters (up to 40GbE)
Product codename
Fortville
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Controller type
Intel® Ethernet Controller X710
Cabling type
SFP+ Direct Attached Twinaxial Cabling up to 10m
Bracket height
Low-Profile (LP) / Full-Height (FH)
Target market
Artificial Intelligence- High Performance Computing
Intel X710DA2 network card Internal Fiber 10000 Mbit/s
