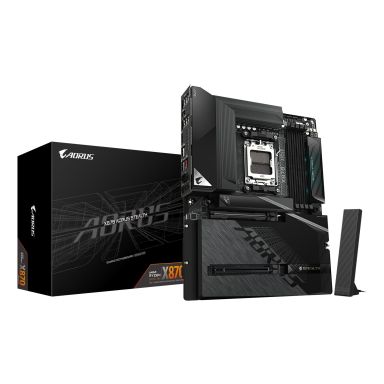

GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
In Stock
|
£256.25
£307.50 (Inc. VAT)
get it next day (UK Mainland Orders)
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
2
Number of chassis fan connectors
6
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
1
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
3
Number of temperature sensor headers
2
Number of noise detection headers
1
Number of RGB LED pin headers
4
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X870
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
On-board graphics card
No
HDMI version
2.1
Cooling type
Passive
Motherboard form factor
ATX
Component for
PC
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
2
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X870
RAID levels
0, 1, 5, 10
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8200 MHz
ECC Ñompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Storage controllers
Number of HDDs supported
2
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
HDCP version
2.3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
S/PDIF out port
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
Digital audio optical out
1
USB4 Gen 3x2 ports quantity
2
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller
Realtek RTL8126
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller model
Qualcomm QCNCM865
Features
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X870
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1220-VB
Product colour
Black
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery capacity
220 mAh
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
512 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
5.1 kg
Software
Windows operating systems supported
Windows 11 x64
Bundled software
Norton® Internet Security (OEM version)
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery capacity
220 mAh
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
5.1 kg
Weight
4.42 kg
Width
305 mm
Depth
244 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version)
Batteries included
Yes
Screws included
Yes
Antenna included
Yes
Other features
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
5.1 kg
Weight
4.42 kg
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
| Length | 27 cm |
| Width | 33.5 cm |
| Height | 8 cm |
| Weight | 5.10 kgs |
