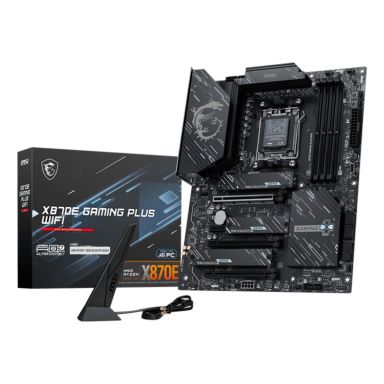

MSI X870E GAMING PLUS WIFI motherboard AMD X870E Socket AM5 ATX

Number of M.2 (M) slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Supported storage drive interfaces

M.2

USB 2.0 connectors

10

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

mSATA ports quantity

0

TPM connector

Yes

Number of SATA connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of COM connectors

1

Number of chassis fan connectors

6

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

On-board graphics card

No

Motherboard form factor

ATX

Component for

PC

Audio output channels

7.1 channels

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

RAID levels

0, 1, 5, 10

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Supported storage drive interfaces

M.2

RAID levels

0, 1, 5, 10

Number of storage drives supported

3

RAID support

Yes

Parallel processing technology support

Not supported

On-board graphics card

No

USB 2.0 ports quantity

4

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Product colour

Black

Number of M.2 (M) slots

3

PCI Express x16 (Gen 3.x) slots

3

PCI Express x1 slots

1

Width

304.8 mm

Depth

243.8 mm

Cables included

SATA

Screws included

Yes

Antenna included

Yes

mSATA ports quantity

0
