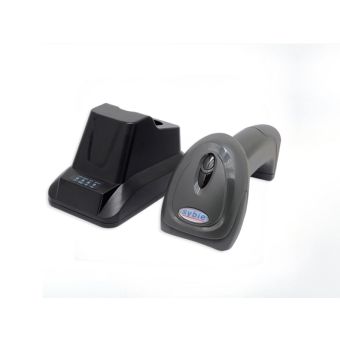

Syble XB-6266MBT barcode reader Handheld bar code reader 1D/2D CMOS Grey

Type

Handheld bar code reader

Linear (1D) barcodes supported

Codabar,Code 128,Code 39,Code 93,GS1 DataBar,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Interleaved 2 of 5,MSI,Matrix 2 of 5,Plessey

2D (matrix & stacked) barcodes supported

Aztec Code, Data Matrix, MaxiCode, PDF417, QR Code

Yaw reading angle

0 - 50°

Wavelength

650 nm

Sensor type

CMOS

Scanner type

1D/2D

Pitch reading angle

0 - 50°

Optical sensor resolution (W x H)

1280 x 1024 pixels

Wireless range

100 m

Connectivity technology

Wireless

Cable length

1.2 m

Standard interfaces

Bluetooth, USB

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

International Protection (IP) code

IP54

Product colour

Grey

Type

Handheld bar code reader

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

International Protection (IP) code

IP54

Product colour

Grey

Power consumption

280 mA

Power source type

Battery

Battery life

7 h

Charging time

5 h

Input voltage

5 V

Battery capacity

2200 mAh

Width

85 mm

Depth

62 mm

Height

154 mm

Weight

317.9 g

Type

Handheld bar code reader

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

International Protection (IP) code

IP54

Product colour

Grey

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

5 - 95%
