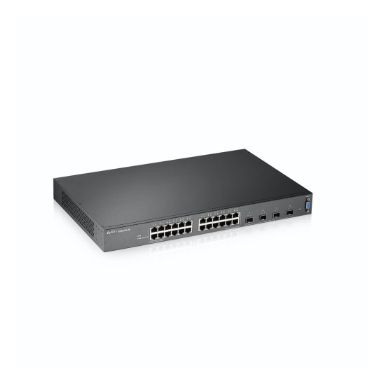

Zyxel XGS2210-28 Managed L2 Gigabit Ethernet (10/100/1000) Black 1U
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Traffic shaping
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Switch layer
L2
Network
IGMP snooping
Yes
MAC address auto-learning supported
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Port-based VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Port-based VLAN
Performance
Packet buffer memory
1.5 MB
Stackable
Yes
Mean time between failures (MTBF)
831699 h
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Black
Stackable
Yes
Mean time between failures (MTBF)
831699 h
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Data transmission
Jumbo frames
9000
Throughput
95.2 Mpps
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Security
BPDU filtering/protection
Yes
Authentication
MAC-based authentication
SSH/SSL support
Yes
Security algorithms
802.1x RADIUS, SNMP, SSH, SSH-2
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Certificates
Safety
LVD, BSMI
Electromagnetic compatibility
FCC 15 (A), CE (A), BSMI
Certification
RoHS
Memory
Packet buffer memory
1.5 MB
Design
Safety
LVD, BSMI
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Power, Status
Electromagnetic compatibility
FCC 15 (A), CE (A), BSMI
Certification
RoHS
Rack mounting
Yes
Indication
LED indicators
Power, Status
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
20 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
68.2 BTU/h
Weight & dimensions
Width
441 mm
Depth
270 mm
Height
45 mm
Weight
3.7 kg
Packaging data
Rack mount kit
Yes
Package width
622 mm
Package depth
358 mm
Package height
108 mm
Package weight
4.8 kg
Cables included
DC
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Rack mount kit
Yes
Cables included
DC
Zyxel XGS2210-28 Managed L2 Gigabit Ethernet (10/100/1000) Black 1U
