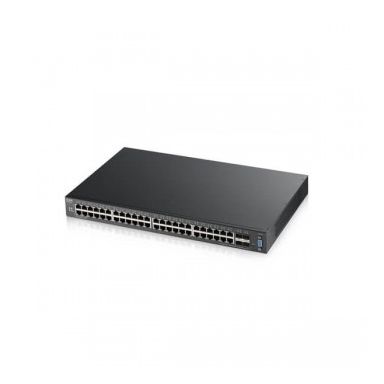

Zyxel XGS2210-52 Managed L2 Gigabit Ethernet (10/100/1000) Black 1U
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1066- RFC 1213- RFC 1493- RFC 1643- RFC 1757- RFC 2011- RFC 2233- RFC 2358- RFC 2674- RFC 2819- RFC 2925- RFC 3621- RFC 4022- RFC 4113- RFC 4292- RFC 4293 |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3at-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN-Protocol-based VLAN-Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN-Protocol-based VLAN-Port-based VLAN |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Noise level | 44.15 dB |
| Mean time between failures (MTBF) | 970594 h |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Noise level | 44.15 dB |
| Mean time between failures (MTBF) | 970594 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Data transmission | |
| Throughput | 130.9 Mpps |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS-SNMP-SSH-SSH-2 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | LVD- BSMI |
| Electromagnetic compatibility | FCC 15 (A)- CE (A)- BSMI |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Safety | LVD- BSMI |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Electromagnetic compatibility | FCC 15 (A)- CE (A)- BSMI |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 45 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 153.3 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 270 mm |
| Height | 45 mm |
| Weight | 3.86 kg |
| Packaging data | |
| Package width | 622 mm |
| Package depth | 358 mm |
| Package height | 108 mm |
| Package weight | 4.92 kg |
| Cables included | AC |
| Packaging content | |
| Cables included | AC |
Zyxel XGS2210-52 Managed L2 Gigabit Ethernet (10/100/1000) Black 1U
