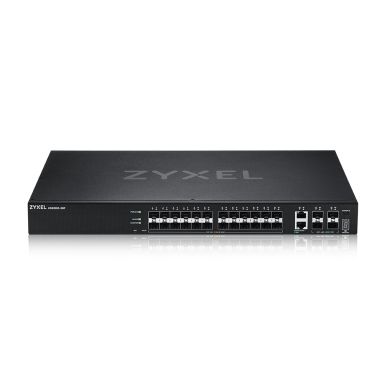

Zyxel XGS2220-30F, L3 Access Switch
In Stock
|
$925.26
$1110.31 (Inc. VAT)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Cloud-managed
Yes
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IGMP proxy
Yes
Networking standards
IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.1p, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3az, IEEE 802.1x
Routing entries
64
10G support
Yes
Data transmission
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Packet buffer memory
2 MB
MAC address table
32000 entries
Switching capacity
168 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
125 Mpps
Performance
Packet buffer memory
2 MB
Mean time between failures (MTBF)
352.923 h
Internal memory
1024 MB
Flash memory
64 MB
Technical details
Product colour
Black
Mean time between failures (MTBF)
352.923 h
Rack mounting
Yes
Compliance certificates
RoHS, Federal Communications Commission (FCC), Low Voltage Directive (LVD), CE
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
No
Installed SFP modules quantity
24
Installed SFP+ modules quantity
4
10G Ethernet (copper) ports quantity
2
Security
BPDU filtering/protection
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
IGMP snooping
Yes
Authentication type
IEEE 802.1x, RADIUS, TACACS+
IGMP proxy
Yes
DHCP features
DHCP relay, DHCP server
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Memory
Packet buffer memory
2 MB
Internal memory
1024 MB
Flash memory
64 MB
Design
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
Power consumption (typical)
66 W
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
225.06 BTU/h
Weight & dimensions
Width
441 mm
Depth
270 mm
Height
44 mm
Weight
3.5 kg
Packaging data
Package width
616 mm
Package depth
355 mm
Package height
107 mm
Package weight
4.83 kg
Zyxel XGS2220-30F, L3 Access Switch
