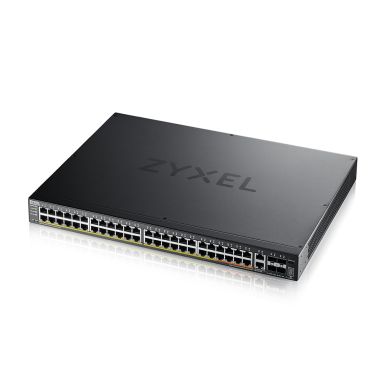

Zyxel XGS2220-54HP, L3 Access Switch
In Stock
|
$1618.31
$1941.97 (Inc. VAT)
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IGMP proxy
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x
Routing entries
64
10G support
Yes
Data transmission
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Packet buffer memory
2 MB
MAC address table
32000 entries
Switching capacity
216 Gbit/s
Jumbo frames support
Yes
Forwarding rate
161 Mpps
Performance
Packet buffer memory
2 MB
Mean time between failures (MTBF)
214.388 h
Internal memory
1024 MB
Flash memory
64 MB
Technical details
Mean time between failures (MTBF)
214.388 h
Rack mounting
Yes
Management features
ARP inspection
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
4
10G Ethernet (copper) ports quantity
2
Security
IGMP snooping
Yes
Authentication type
IEEE 802.1x, RADIUS, TACACS+
IGMP proxy
Yes
DHCP features
DHCP relay, DHCP server
Multicast features
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Memory
Packet buffer memory
2 MB
Internal memory
1024 MB
Flash memory
64 MB
Design
Rack mounting
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power
Power consumption (max)
754.11 W
Power supply included
Yes
AC input voltage
100 - 240 V
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
600 W
Power over Ethernet (PoE) ports quantity
50
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
2571.52 BTU/h
Weight & dimensions
Width
441 mm
Depth
330 mm
Height
44 mm
Weight
5 kg
Zyxel XGS2220-54HP, L3 Access Switch
