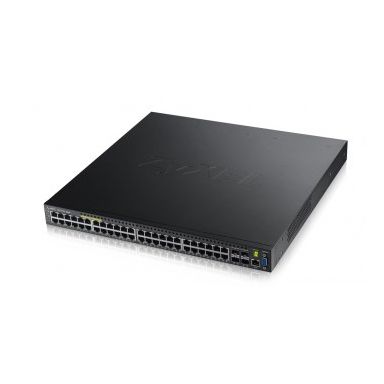

Zyxel XGS3700-48HP-ZZ0101F Managed L2+ Gigabit Power over Ethernet (PoE)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2+ |
| Network | |
| IGMP snooping | Yes |
| Cable length detection | Yes |
| Networking standards | IEEE 802.1ab-IEEE 802.1ag-IEEE 802.1D-IEEE 802.1p-IEEE 802.1Q-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3ah-IEEE 802.3aq-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z |
| VLAN support | Yes |
| Routing entries | 512 |
| Rate limiting | Yes |
| Port mirroring | Yes |
| IP address table | 512 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 2 MB |
| Auto-negotiation | Yes |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 200000 h |
| Power | |
| Power connector | DC-in jack |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Technical details | |
| Product colour | Blue |
| Mean time between failures (MTBF) | 200000 h |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Data transmission | |
| Throughput | 131 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Security | |
| Static port security | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server-DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | LVB- BSMI |
| Electromagnetic compatibility | FCC Part 15 (Class A)- CE EMC (Class A)- BSMI ENC |
| Certification | RoHS (Level A) |
| Memory | |
| Packet buffer memory | 2 MB |
| Design | |
| Wall mountable | Yes |
| Safety | LVB- BSMI |
| Product colour | Blue |
| LED indicators | Yes |
| Electromagnetic compatibility | FCC Part 15 (Class A)- CE EMC (Class A)- BSMI ENC |
| Certification | RoHS (Level A) |
| Indication | |
| Power LED | Yes |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 2046 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 437 mm |
| Height | 44 mm |
| Weight | 8.02 kg |
| Other features | |
| Power LED | Yes |
Zyxel XGS3700-48HP-ZZ0101F Managed L2+ Gigabit Power over Ethernet (PoE)
