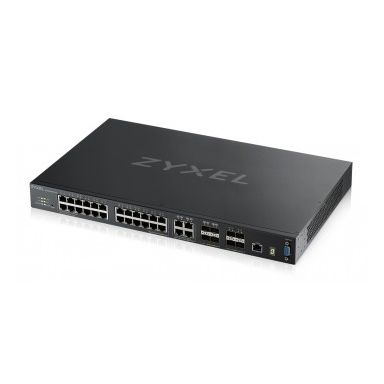

Zyxel XGS4600-32-ZZ0102F Managed L3 Gigabit Ethernet Black
In Stock
|
$1999.55
$2399.46 (Inc. VAT)
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
Console port
RS-232
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1ad-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
12000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
10G support
Yes
Virtual LAN features
Tagged VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Tagged VLAN
Performance
Packet buffer memory
4 MB
Noise level
59.8 dB
Mean time between failures (MTBF)
860610.82 h
Internal memory
1000 MB
Flash memory
64 MB
Technical details
Product colour
Black
Noise level
59.8 dB
Mean time between failures (MTBF)
860610.82 h
Rack mounting
Yes
Data transmission
Throughput
101.1 Mpps
Number of IP interfaces
256
Packet buffer memory
4 MB
MAC address table
32000 entries
Switching capacity
136 Gbit/s
Security
Authentication
Port-based authentication
Security algorithms
SSH-SSH-2-SSL/TLS
IGMP snooping
Yes
Multicast features
Multicast support
Yes
Certificates
Safety
ANSI/UL 60950-1- CSA 60950-1- EN 60950-1- IEC 60950-1
Certification
FCC Part 15 (Class A) CE EMC (Class A)
Memory
Packet buffer memory
4 MB
Internal memory
1000 MB
Flash memory
64 MB
Design
Safety
ANSI/UL 60950-1- CSA 60950-1- EN 60950-1- IEC 60950-1
Product colour
Black
Certification
FCC Part 15 (Class A) CE EMC (Class A)
Rack mounting
Yes
Power
Power consumption (max)
47 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
160.27 BTU/h
Weight & dimensions
Width
441 mm
Depth
270 mm
Height
44 mm
Weight
3.96 kg
Packaging data
Rack mount kit
Yes
Package width
616 mm
Package depth
335 mm
Package height
107 mm
Package weight
5.69 kg
Packaging content
Rack mount kit
Yes
Zyxel XGS4600-32-ZZ0102F Managed L3 Gigabit Ethernet Black
| Length | 27.00 cm |
| Width | 44.10 cm |
| Height | 4.40 cm |
| Weight | 3.960000 kgs |
