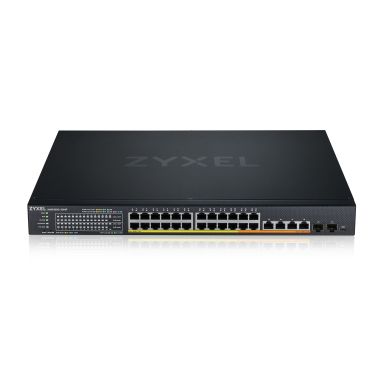

Zyxel XMG1930-30HP Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
In Stock
|
$1256.71
$1508.05 (Inc. VAT)
Management features
Reset button
Yes
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L3
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Networking standards
IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Number of VLANs
4000
Flow control support
Yes
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Broadcast storm control
Yes
10G support
Yes
Policy-based routing
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Data transmission
Number of VLANs
4000
Jumbo frames
12000
MAC address table
16000 entries
Switching capacity
240 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
178.5 Mpps
Optical fiber
Fiber optic connector
SFP+
Power
Power connector
AC-in jack
Power consumption (max)
864.1 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
587922.31 h
Rack mounting
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Installed SFP+ modules quantity
2
Fiber optic connector
SFP+
Power connector
AC-in jack
10G Ethernet (copper) ports quantity
4
Security
Loop protection
Yes
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCPv6 relay
Multicast features
Multicast support
Yes
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Design
Reset button
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Performance
Mean time between failures (MTBF)
587922.31 h
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
20
Total Power over Ethernet (PoE) budget
700 W
Power over Ethernet (PoE) ports quantity
28
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
864.1 BTU/h
Weight & dimensions
Width
441 mm
Depth
330 mm
Height
44 mm
Weight
4.85 kg
Packaging data
Rack mount kit
Yes
Cables included
AC
Other features
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Packaging content
Rack mount kit
Yes
Cables included
AC
Zyxel XMG1930-30HP Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
