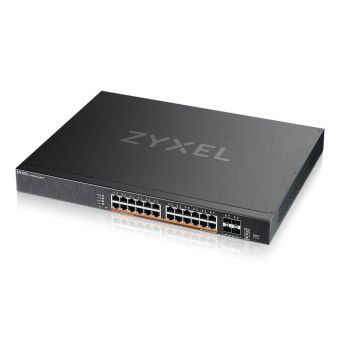

Zyxel XMG2230-28HP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

ARP inspection

Yes

Switch type

Managed

Quality of Service (QoS) support

Yes

Multicast support

Yes

Switch layer

L2/L3

Configuring Location Settings (CLI)

Yes

Cloud-managed

Yes

SFP+ module slots quantity

4

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

Console port

RJ-45/USB Type-C

Copper ethernet cabling technology

2.5GBASE-T, 100BASE-T, 1000BASE-T

Copper ethernet cabling technology

2.5GBASE-T, 100BASE-T, 1000BASE-T

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z

Routing entries

64

Rate limiting

Yes

Port mirroring

Yes

Broadcast storm control

Yes

10G support

Yes

Policy-based routing

Yes

Virtual LAN features

IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

IGMP snooping

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

IGMP proxy

Yes

Jumbo frames

12

Number of static routes

4000

Number of IP interfaces

32

Packet buffer memory

2 MB

MAC address table

32000 entries

Switching capacity

200 Gbit/s

Jumbo frames support

Yes

Static route

Yes

Forwarding rate

148.8 Mpps

IP-MAC-Port binding

Yes

BPDU filtering/protection

Yes

Authentication

Guest VLAN, MAC-based authentication

Static port security

Yes

SSH/SSL support

Yes

Security algorithms

SNMP, SNMPv2, SNMPv3

IGMP snooping

Yes

Authentication type

IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+

IGMP proxy

Yes

DHCP features

DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping

Multicast support

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

IPv4 & IPv6 features

Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet

Form factor

1U

Product colour

Black

Stackable

Yes

LED indicators

Yes

Rack mounting

Yes

Certification

FCC Part 15 (Class A) CE EMC (Class A) BSMI EMC

Noise level

48.85 dB

Mean time between failures (MTBF)

554612.62 h

Internal memory

1000 MB

Flash memory

64 MB

Packet buffer memory

2 MB

Stackable

Yes

Power consumption (max)

1519.1 W

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

DC input voltage

50 - 57 V

Power source

AC/PoE

Total Power over Ethernet (PoE) budget

1440 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE++ (4PPoE)

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

5 - 95%

Heat dissipation

2856 BTU/h

Virtual LAN features

IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Width

441 mm

Depth

330 mm

Height

44 mm

Weight

4.53 kg

Package width

580 mm

Package depth

503 mm

Package height

95 mm

Package weight

6.81 kg

IPv4 & IPv6 features

Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet

Form factor

1U

Product colour

Black

Stackable

Yes

Noise level

48.85 dB

Mean time between failures (MTBF)

554612.62 h

Rack mounting

Yes

Compliance certificates

BSMI, Low Voltage Directive (LVD), RoHS

Packet buffer memory

2 MB

Internal memory

1000 MB

Flash memory

64 MB

Certification

FCC Part 15 (Class A) CE EMC (Class A) BSMI EMC

Compliance certificates

BSMI, Low Voltage Directive (LVD), RoHS

LED indicators

Yes

GARP VLAN Registration Protocol (GVRP)

Yes
