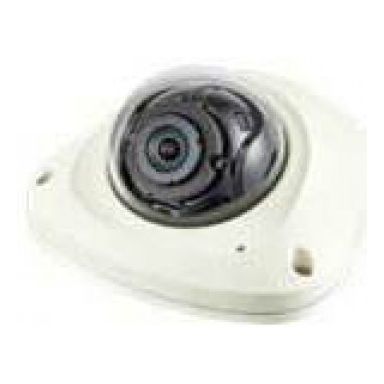

Hanwha XNV-6012 security camera IP security camera Indoor & outdoor 1920 x 1080 pixels

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

Fog proof

Yes

Type

IP security camera

Connectivity technology

Wired

Placement supported

Indoor & outdoor

Auto-tracking

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Certification

EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007

IK code

IK10

Fog proof

Yes

Product colour

Ivory

Protection features

Vandal proof

International Protection (IP) code

IP66

Housing material

Metal

Minimum illumination

0.004 lx

Tilt angle range

Pan range

White balance

ATW, AWC, Indoor, Manual, Outdoor

Angle of rotation

Camera shutter type

Electronic

Camera shutter speed

2 - 1/12000 s

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, horizontal

Lens viewing angle, vertical

Lens viewing angle, diagonal

Number of effective pixels (H x V)

1945 x 1079 pixels

Sensor type

CMOS

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

2

Focus

Manual

Fixed focal length

2.4 mm

Night vision

No

Noise reduction

Yes

Privacy masking

Yes

Flip & mirror

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Back Light Compensation (BLC)

Yes

Maximum resolution

1920 x 1080 pixels

Video formats supported

H.264, H.265, M-JPEG

Supported graphics resolutions

320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960

Frame rate

60 fps

Total megapixels

2 MP

Sample rate

16 kHz

Built-in microphone

Yes

Audio formats supported

ADPCM, G.711, G.726, LC-AAC

Audio detection

Yes

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af

Quality of Service (QoS) support

Yes

Number of users

20 user(s)

Streaming method

Multicast, Unicast

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP

Maximum memory card size

256 GB

Card reader integrated

Yes

Compatible memory cards

SD, SDHC, SDXC

Internal memory

1024 MB

Flash memory

256 MB

USB port

Yes

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Crossing line, Defocus, Face detection

Video motion detection

Yes

Security algorithms

802.1x RADIUS, EAP-TLS

IP address filtering

Yes

Anti-flicker

Yes

Power source type

PoE

Power consumption (Power over Ethernet (PoE))

6.5 W

Certification

EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Windows operating systems supported

Windows 10, Windows 7, Windows 8.1

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra

Width

98.9 mm

Depth

100 mm

Height

52 mm

Weight

295 g

Number of cameras

1

Focus

Manual
