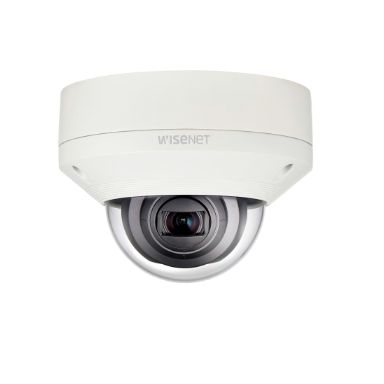

Hanwha XNV-6080 security camera Dome IP security camera Indoor & outdoor

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

PTZ modes

Digital PTZ

Fog proof

Yes

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor & outdoor

Auto-tracking

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Certification

NEMA 4X

IK code

IK10

Fog proof

Yes

Form factor

Dome

Product colour

Ivory

Mounting type

Ceiling

Protection features

Vandal proof

International Protection (IP) code

IP66, IP67

Housing material

Aluminium

Minimum illumination

0.0015 lx

Tilt angle range

0 - 67°

Pan range

0 - 354°

White balance

ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp

Angle of rotation

355°

Camera shutter type

Electronic

Camera shutter speed

2 - 1/12000 s

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, horizontal

119.5°

Lens viewing angle, vertical

62.8°

Lens viewing angle, diagonal

142.1°

Progressive scan

Yes

Number of effective pixels (H x V)

1945 x 1097 pixels

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

3.6

Closest focusing distance

0.5 m

Minimum aperture number

1.4

Focus

Motorized/Manual

Zoom capability

Yes

Optical zoom

4.3x

Digital zoom

24x

Focal length range

2.8 - 12 mm

Night vision

No

Noise reduction

Yes

Image quality adjustment

Contrast

Text caption overlay

Yes

Privacy masking

Yes

Flip & mirror

Yes

Image stabilizer

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Maximum resolution

1920 x 1080 pixels

Video formats supported

AVC, H.264, H.265, M-JPEG, MPEG4

Supported graphics resolutions

320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Frame rate

60 fps

Video streaming

Yes

Total megapixels

2.16 MP

Sample rate

48 kHz

Signal-to-Noise Ratio (SNR)

50 dB

Audio system

2-way

Audio formats supported

ADPCM, G.711, G.726, LC-AAC

Audio detection

Yes

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af

Quality of Service (QoS) support

Yes

Number of users

20 user(s)

Streaming method

Multicast, Unicast

Ethernet LAN

Yes

Supported network protocols

TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour

Maximum memory card size

512 GB

Card reader integrated

Yes

Compatible memory cards

SD, SDHC, SDXC

USB port

Yes

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Composite video out

1

Connectivity technology

Wired

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Crossing line, Defocus, Face detection, Missing object

Video motion detection

Yes

Security algorithms

802.1x RADIUS, EAP-TLS

IP address filtering

Yes

Active tampering alarm

Yes

Anti-flicker

Yes

Web browser

Yes

Power source type

AC, DC, PoE

Power consumption (max)

8.2 W

Power consumption (Power over Ethernet (PoE))

7.8 W

AC input voltage

24 V

Power consumption (typical)

7 W

Certification

NEMA 4X

Operating temperature (T-T)

-40 - 55 °C

Storage temperature (T-T)

-50 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Windows operating systems supported

Windows 10, Windows 7, Windows 8.1

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra

Width

160 mm

Depth

160 mm

Height

118.5 mm

Weight

985 g

Number of cameras

1

Focus

Motorized/Manual
