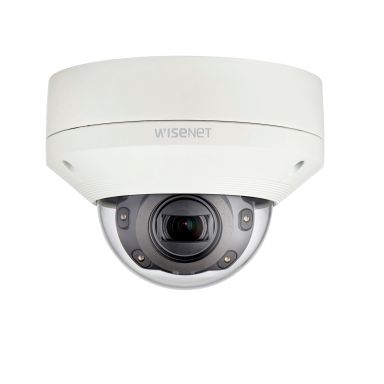

Hanwha XNV-6080R security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
In Stock
|
$580.31
$696.37 (Inc. VAT)
Performance
Infrared (IR) cut-off filter
Yes
Remote viewing
Yes
PTZ modes
Digital PTZ
Fog proof
Yes
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor & outdoor
Auto-tracking
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Certification
NEMA 4X
Design
IK code
IK10
Fog proof
Yes
Form factor
Dome
Product colour
Ivory
Mounting type
Ceiling
Protection features
Vandal proof
International Protection (IP) code
IP66, IP67
Housing material
Aluminium
Camera
Minimum illumination
0.015 lx
Tilt angle range
0 - 67°
Pan range
0 - 354°
White balance
ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp
Angle of rotation
355°
Camera shutter type
Electronic
Camera shutter speed
2 - 1/12000 s
Camera pan control
Yes
Camera tilt control
Yes
Lens viewing angle, horizontal
119.5°
Lens viewing angle, vertical
62.8°
Lens viewing angle, diagonal
142.1°
Progressive scan
Yes
Image sensor
Number of effective pixels (H x V)
1945 x 1097 pixels
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
3.6
Closest focusing distance
0.5 m
Minimum aperture number
1.4
Focus
Motorized/Manual
Zoom capability
Yes
Optical zoom
4.3x
Digital zoom
24x
Focal length range
2.8 - 12 mm
Night vision
Night vision
Yes
Night vision distance
50 m
LED type
IR
Video
Noise reduction
Yes
Image quality adjustment
Contrast
Text caption overlay
Yes
Privacy masking
Yes
Flip & mirror
Yes
Image stabilizer
Yes
Highlight Compensation (HLC)
Yes
Bit rate control
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Noise reduction technology
3D noise reduction
Maximum resolution
1920 x 1080 pixels
Video formats supported
AVC, H.264, H.265, M-JPEG, MPEG4
Supported graphics resolutions
320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate
60 fps
Video streaming
Yes
Total megapixels
2.16 MP
Audio
Sample rate
48 kHz
Signal-to-Noise Ratio (SNR)
50 dB
Audio system
2-way
Audio formats supported
ADPCM, G.711, G.726, LC-AAC
Audio detection
Yes
Network
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af
Quality of Service (QoS) support
Yes
Number of users
20 user(s)
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Supported network protocols
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Storage
Maximum memory card size
512 GB
Card reader integrated
Yes
Compatible memory cards
SD, SDHC, SDXC
Ports & interfaces
USB port
Yes
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Composite video out
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Crossing line, Defocus, Face detection, Missing object
Video motion detection
Yes
Security algorithms
802.1x RADIUS, EAP-TLS
IP address filtering
Yes
Active tampering alarm
Yes
Anti-flicker
Yes
Management features
Web browser
Yes
Power
Power source type
AC, DC, PoE
Power consumption (max)
14 W
Power consumption (Power over Ethernet (PoE))
12.95 W
AC input voltage
24 V
Power consumption (typical)
11.5 W
Certificates
Certification
NEMA 4X
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-50 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
System requirements
Windows operating systems supported
Windows 10, Windows 7, Windows 8.1
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Weight & dimensions
Width
160 mm
Depth
160 mm
Height
118.5 mm
Weight
995 g
Packaging content
Number of cameras
1
Other features
Focus
Motorized/Manual
Hanwha XNV-6080R security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
