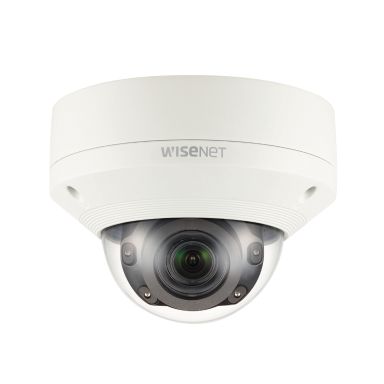

Hanwha XNV-8080R Dome IP security camera Indoor & outdoor 2560 x 1920 pixels Ceiling
In Stock
|
Call For Price
(0808 189 1246)
Performance
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
Ivory
Mounting type
Ceiling
Protection features
Vandal proof
International Protection (IP) code
IP67
Housing material
Aluminium
Camera
Adjustment shutter speed
Manual
Tilt angle range
0 - 67°
Pan range
0 - 354°
Camera shutter type
Electronic
Camera shutter speed
2 - 1/12000 s
Progressive scan
Yes
Image sensor
Number of effective pixels (H x V)
2616 x 1976 pixels
Sensor type
CMOS
Progressive scan
Yes
Lens system
Maximum aperture number
1.3
Focus
Motorized/Manual
Focal length range
3.9 - 9.4 mm
Night vision
Night vision
Yes
Night vision distance
50 m
LED type
IR
Video
Full HD
Yes
Noise reduction
Yes
Image quality adjustment
Contrast
Privacy masking
Yes
Flip & mirror
Yes
Gain control type
Auto/Manual
3D NR (Noise Reduction)
Yes
Video compression formats
H.264- H.265- MPEG4
Maximum resolution
2560 x 1920 pixels
Frame rate
30 fps
Video streaming
Yes
Total megapixels
5 MP
Audio
Voice codecs
G.711- G.711u- G.726
Signal-to-Noise Ratio (SNR)
50 dB
Audio system
2-way
Audio detection
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af
Number of users
20 user(s)
Streaming method
Multicast- Unicast
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Wi-Fi
No
Storage
Maximum memory card size
512 GB
Card reader integrated
Yes
Compatible memory cards
SD- SDHC- SDXC
Ports & interfaces
USB port
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Intelligent Video Surveillance (IVS) system features
Face detection
Video motion detection
Yes
IP address filtering
Yes
Active tampering alarm
Yes
Power
Power source type
PoE
Power consumption (max)
14 W
Power consumption (Power over Ethernet (PoE))
12.95 W
Power over Ethernet (PoE)
Yes
AC input voltage
24 V
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-50 - 60 °C
Weight & dimensions
Height
118.5 mm
Diameter
16 cm
Weight
1.01 kg
Packaging content
Number of cameras
1
Technical details
Iris
Yes
Output impedance
75 Ω
Maximum output level
1 Vpp
Other features
USB connectivity
Yes
Hanwha XNV-8080R Dome IP security camera Indoor & outdoor 2560 x 1920 pixels Ceiling
