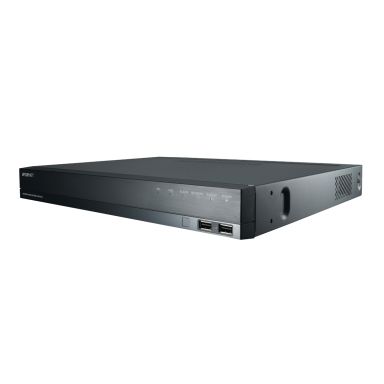

Hanwha XRN-820S network video recorder Black
In Stock
|
$647.60
$777.12 (Inc. VAT)
Performance
Video input channels
8 channels
Alarm input channels
4
Alarm output channels
2
Maximum resolution
3840 x 2160 pixels
Video codecs
H.265, H.264, MJPEG
Audio codecs
G.711, G.726, AAC
PTZ control
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Audio system
2-way
Supported resolutions
3840 x 2160, 1920x1080
Networking standards
IEEE 802.3af, IEEE 802.3at
Output bandwidth
32 Mbit/s
Input bandwidth
100 Mbit/s
Wireless LAN features
Wi-Fi
No
Storage
Number of HDDs supported
2
Maximum storage capacity
12 TB
HDD interface
SATA, SATA II, SATA III
Ports & interfaces
Ethernet LAN (RJ-45) ports
10
Power over Ethernet (PoE)
Yes
VGA (D-Sub) output ports
1
HDMI output
Yes
USB 2.0 ports quantity
2
Ethernet LAN data rates
10,100,1000 Mbit/s
Audio RCA outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Power over Ethernet (PoE) ports quantity
8
Networking standards
IEEE 802.3af, IEEE 802.3at
HDMI ports quantity
1
Features
LED indicators
Yes
Reset button
Yes
Product colour
Black
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
160 W
Total Power over Ethernet (PoE) budget
100 W
Power over Ethernet (PoE) power per port
30 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 85%
Weight & dimensions
Width
370 mm
Depth
324.3 mm
Height
50.7 mm
Weight
2.7 kg
