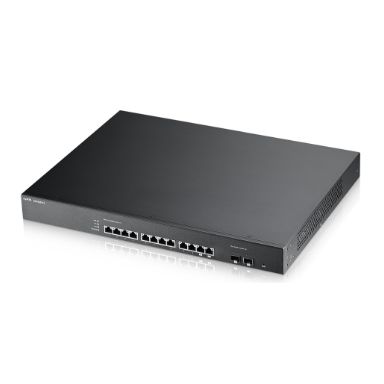

Zyxel XS1920-12-ZZ0101F Managed L2 10G Ethernet Black
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T-10GBASE-T
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
2 MB
Mean time between failures (MTBF)
839624.71 h
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
839624.71 h
Rack mounting
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 1066- RFC 1213- RFC 1493- RFC 1643- RFC 1757- RFC 2011/2012/2013- RFC 2233- RFC 2358- RFC 2674- RFC 2819- RFC 4022- RFC 4113- RFC 4292- RFC 4293
Switch layer
L2
Network
Copper ethernet cabling technology
1000BASE-T-10GBASE-T
Networking standards
IEEE 802.1ab-IEEE 802.1D-IEEE 802.1p-IEEE 802.1Q-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3ae-IEEE 802.3an-IEEE 802.3az-IEEE 802.3x-IEEE 802.3z
VLAN support
Yes
10G support
Yes
Data transmission
Throughput
178.6 Mpps
Packet buffer memory
2 MB
MAC address table
16000 entries
Switching capacity
240 Gbit/s
Security
Static port security
No
SSH/SSL support
Yes
MAC address filtering
Yes
Protocols
Management protocols
SNMP v1- SNMP v2c- SNMP v3- RMON 1/2/3/9
Certificates
Safety
LVD- BSMI
Certification
EMC: FCC Part 15 (Class A)- CE EMC (Class A)- BSMI ENCRoHS: Level A
Memory
Packet buffer memory
2 MB
Design
Safety
LVD- BSMI
Form factor
1U
Product colour
Black
Certification
EMC: FCC Part 15 (Class A)- CE EMC (Class A)- BSMI ENCRoHS: Level A
Rack mounting
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
95.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
325.97 BTU/h
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44.5 mm
Weight
4.21 kg
Packaging data
Package width
583 mm
Package depth
451 mm
Package height
98 mm
Package weight
5.68 kg
Cables included
AC
Packaging content
Cables included
AC
Zyxel XS1920-12-ZZ0101F Managed L2 10G Ethernet Black
| Length | 33.00 cm |
| Width | 44.00 cm |
| Height | 4.45 cm |
| Weight | 4.210000 kgs |
