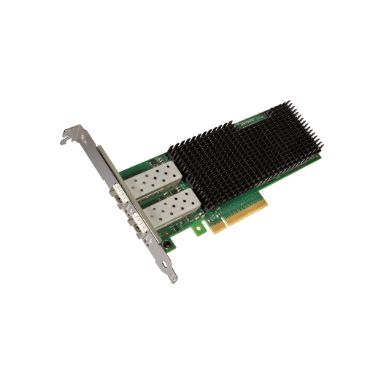

Intel XXV710DA2 network card Internal Fiber 25000 Mbit/s

Internal

Yes

PCI version

3.0

Fiber ports quantity

2

Fiber optic connector

SFP28

Ethernet LAN (RJ-45) ports

2

Interface

Fiber

Host interface

PCI Express

Connectivity technology

Wired

Data transfer rate

8 GT/s

Maximum data transfer rate

25000 Mbit/s

Data transfer rate

8 GT/s

VLAN tagging

Yes

iSCSI support

Yes

Ethernet LAN

Yes

Networking standards

IEEE 802.1Q- IEEE 802.1Qbg- IEEE 802.1p- IEEE 802.3- IEEE 802.3ad

Maximum operating distance

5 m

Ethernet LAN data rates

1000-10000-25000 Mbit/s

Maximum data transfer rate

25000 Mbit/s

Interface type

PCIe v3.0 (8.0 GT/s)

Product colour

Black- Green

Speed & slot width

8.0 GT/s- x8 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

Low halogen options available

No

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Data Direct I/O Technology

Yes

Storage Over Ethernet

iSCSI- NFS

Harmonized System (HS) code

85176990

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Product type

Network Interface Card

Processor family

700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)

Status

Launched

Product brief URL

http://www.intel.com/content/www/us/en/ethernet-products/network-adapters/ethernet-xxv710-brief.html

Network interface card type

Server

Network interface card cable medium

Copper- Fiber

Market segment

Server

Launch date

Q1'17

Last change

64826842

Product colour

Black- Green

Internal

Yes

Product family

Intel® 25 Gigabit Server Adapters

Product series

700 Series Network Adapters (up to 40GbE)

Linux operating systems supported

Yes

Other operating systems supported

VMware vSphere ESXi

Server operating systems supported

Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016

Linux operating systems supported

Yes

Other operating systems supported

VMware vSphere ESXi

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Width

167 mm

Height

68.7 mm

Server operating systems supported

Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016

Ethernet adapter ARK ID

95260

Linux operating systems supported

Yes

Other operating systems supported

VMware vSphere ESXi

Speed & slot width

8.0 GT/s- x8 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Data Direct I/O Technology

Yes

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Data transfer rate

8 GT/s

Product type

Network Interface Card

Processor family

700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)

Ethernet adapter ARK ID

95260

Interface type

PCIe v3.0 (8.0 GT/s)

Cable type

SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR & LR Optics also supported

Speed & slot width

8.0 GT/s- x8 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

Low halogen options available

No

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Data Direct I/O Technology

Yes

Storage Over Ethernet

iSCSI- NFS

Status

Launched

Product brief URL

http://www.intel.com/content/www/us/en/ethernet-products/network-adapters/ethernet-xxv710-brief.html

Network interface card type

Server

Network interface card cable medium

Copper- Fiber

Market segment

Server

Launch date

Q1'17

Last change

64826842

Product family

Intel® 25 Gigabit Server Adapters

Product series

700 Series Network Adapters (up to 40GbE)

Harmonized System (HS) code

85176990

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Cabling type

SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR & LR Optics also supported

Bracket height

Low-Profile (LP) / Full-Height (FH)

Target market

Artificial Intelligence- High Performance Computing
