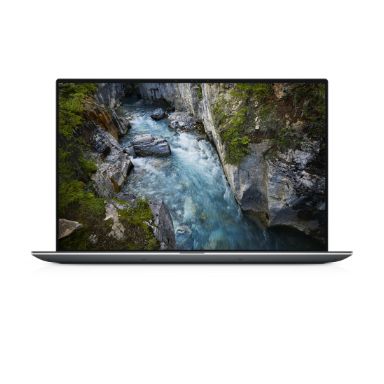

DELL Precision 5570 i7-12800H Mobile workstation 39.6 cm (15.6") Touchscreen UHD+ Intel® Core™ i7
Out of Stock
|
Call For Price (0808 189 1246)
Design
Product type
Mobile workstation
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Intel® vPro™ Platform Eligibility
Yes
Introduction year
2022
Display
HD type
UHD+
Pixel density
290 ppi
Panel type
WLED
LED backlight
Yes
Display brightness
500 cd/m²
Display response rise/fall
60 ms
Pixel pitch
0.09 x 0.09 mm
Contrast ratio (typical)
1600:1
Touchscreen
Yes
Display resolution
3840 x 2400 pixels
Display diagonal
39.6 cm (15.6")
Maximum refresh rate
60 Hz
RGB colour space
Adobe RGB
High Dynamic Range (HDR) technology
High Dynamic Range (HDR) 400
Colour gamut
100%
Native aspect ratio
16:10
High Dynamic Range (HDR) supported
Yes
Processor
Processor generation
12th gen Intel® Core™ i7
Configurable TDP-down
35 W
Processor cache
24 MB
Processor model
i7-12800H
Processor boost frequency
4.8 GHz
Processor cores
14
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Memory
Memory form factor
SO-DIMM
Internal memory
32 GB
Memory layout (slots x size)
2 x 16 GB
Internal memory type
DDR5-SDRAM
Memory clock speed
4800 MHz
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
NVMe- PCI Express 4.0
Card reader integrated
Yes
Compatible memory cards
SDXC- SD- SDHC
Total storage capacity
512 GB
Total SSDs capacity
512 GB
NVMe
Yes
Graphics
Discrete graphics card
Yes
Discrete graphics card memory
8 GB
On-board graphics card
Yes
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
NVIDIA RTX A2000
Discrete graphics memory type
GDDR6
Discrete GPU manufacturer
NVIDIA
Audio
Audio chip
Realtek ALC3281
Number of microphones
2
Number of built-in speakers
4
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1280 x 720 pixels
Video capturing speed
30 fps
Front camera HD type
HD
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)- Wi-Fi 6E (802.11ax)
Ethernet LAN
No
Bluetooth
Yes
Wi-Fi data rate (max)
2400 Mbit/s
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
Combo headphone/mic port
Yes
USB Power Delivery
Yes
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Keyboard
Pointing device
Touchpad
Numeric keypad
No
Keyboard backlit
Yes
Keyboard language
UK English
Software
Operating system language
German- English- French- Italian
Operating system architecture
64-bit
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system installed
Windows 10 Pro
Windows 11 free upgrade
Yes
Technical details
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Discrete graphics card memory
8 GB
Processor special features
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Trusted Execution Technology
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel Flex Memory Access
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Execute Disable Bit
Yes
Embedded options available
No
CPU configuration (max)
1
Intel Virtualization Technology (VT-x)
Yes
Intel® vPro™ Platform Eligibility
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery capacity
86 Wh
Battery recharge time
3 h
Battery voltage
11.4 V
Fast charging
Yes
Battery weight
340 g
Power
AC adapter power
130 W
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output current
6.5 A
AC adapter output voltage
20 V
Security
Password protection
Yes
Trusted Platform Module (TPM)
Yes
Fingerprint reader
Yes
Cable lock slot
Yes
Trusted Platform Module (TPM) version
2.0
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Weight & dimensions
Width
344.4 mm
Depth
230.1 mm
Height (front)
1.85 cm
Height (rear)
1.17 cm
Weight
2.1 kg
Packaging data
Cables included
AC
Other features
Wi-Fi data rate (max)
2400 Mbit/s
WLAN controller model
Intel Wi-Fi 6E AX211
On-board graphics card
Yes
Harmonized System (HS) code
84713000
Packaging content
Cables included
AC
Logistics data
Harmonized System (HS) code
84713000
DELL Precision 5570 i7-12800H Mobile workstation 39.6 cm (15.6") Touchscreen UHD+ Intel® Core™ i7
| Length | 23.01 cm |
| Width | 34.44 cm |
| Height | 1.85 cm |
| Weight | 2.10 kgs |
