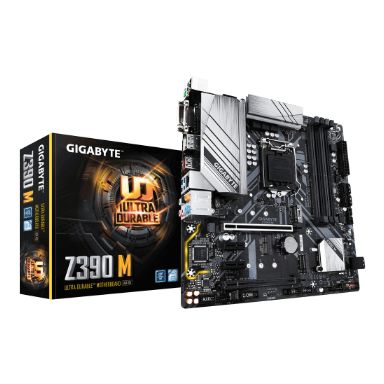

Gigabyte Z390 M motherboard LGA 1151 (Socket H4) micro ATX Intel Z390
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | PCI Express 3.0-SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Serial port via internal header | Yes |
| Serial port headers | 1 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z390 |
| Serial port via internal header | Yes |
| Serial port headers | 1 |
| Parallel processing technology support | 2-Way CrossFireX-Quad-GPU CrossFireX |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z390 |
| RAID levels | 0-1-5-10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium® |
| Processor socket | LGA 1151 (Socket H4) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | No |
| Non-ECC | Yes |
| Supported memory clock speeds | 4266-4133-4000-3866-3800-3733-3666-3600-3466-3400-3333-3300-3200-3000-2800-2666-2400-2133 MHz |
| Supported memory module capacities | 4GB- 8GB- 16GB- 32GB |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 3.0-SATA III |
| RAID levels | 0-1-5-10 |
| Graphics | |
| Parallel processing technology support | 2-Way CrossFireX-Quad-GPU CrossFireX |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z390 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC892 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 2 |
| PCI Express x1 slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| DualBIOS | Yes |
| Power | |
| Power source type | ATX |
| Processor special features | |
| Intel® Optane™ Memory Ready | Yes |
| Software | |
| Windows operating systems supported | Windows 10 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
| Serial port via internal header | Yes |
| DualBIOS | Yes |
