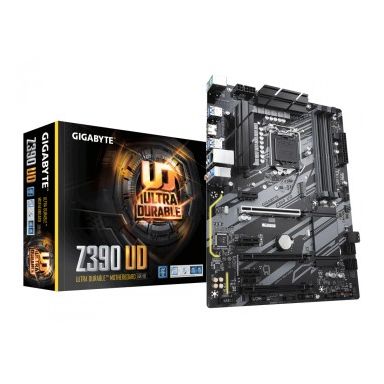

Gigabyte Z390 UD motherboard LGA 1151 (Socket H4) ATX Intel Z390
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
1
Thunderbolt headers
1
Front panel connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port via internal header
Yes
Serial port headers
1
S/PDIF out connector
Yes
Number of SATA III connectors
6
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z390
Serial port via internal header
Yes
Serial port headers
1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel Z390
RAID levels
0-1-5-10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Processor socket
LGA 1151 (Socket H4)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666 MHz
Supported memory module capacities
16GB
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
RAID levels
0-1-5-10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel Z390
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 slots
3
PCI Express x1 slots
3
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
16 Mbit
ACPI version
5
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Processor special features
Intel® Optane⢠Memory Ready
Yes
Software
Windows operating systems supported
Windows 10
Weight & dimensions
Width
305 mm
Depth
230 mm
