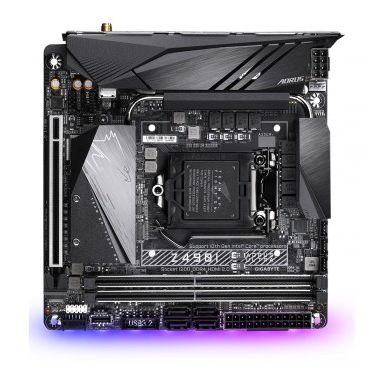

Gigabyte Z490I AORUS ULTRA (rev. 1.x) motherboard LGA 1200 Mini ITX Intel Z490
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
PC health monitoring
Fan- Temperature- Voltage
On-board graphics adapter
Yes
Motherboard form factor
mini ITX
Component for
PC
Number of mounting holes
4
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
RAID levels
0-1-5-10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
5000-4933-2133-2400-2666-2800-2933-3000-3200-3300-3333-3400-3466-3600-3666-3733-3800-3866-4000-4133-4266-4300-4400-4500-4600-4700-4800 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0-1-5-10
Graphics
Maximum graphics adapter memory
512 MB
On-board graphics adapter
Yes
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Graphics adapter family
Intel
Graphics adapter
HD Graphics
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.1
Features
Power source type
ATX
Number of mounting holes
4
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Audio chip
Realtek ALC1220-VB
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Video
Maximum graphics adapter memory
512 MB
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Graphics adapter family
Intel
Graphics adapter
HD Graphics
Software
Windows operating systems supported
Windows 10
Bundled software
Norton Internet Security- cFosSpeed- XSplit Gamecaster + Broadcaster (12 months license)
Weight & dimensions
Width
170 mm
Depth
170 mm
Packaging content
Bundled software
Norton Internet Security- cFosSpeed- XSplit Gamecaster + Broadcaster (12 months license)
