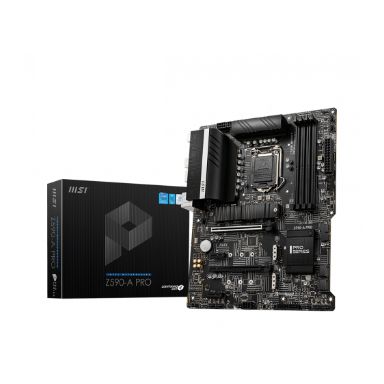

MSI Z590-A PRO motherboard Intel Z590 LGA 1200 (Socket H5) ATX

Number of M.2 (M) slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2-SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Serial port headers

1

Number of SATA III connectors

6

Number of chassis fan connectors

6

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

Motherboard chipset family

Intel

Motherboard chipset

Intel Z590

Serial port headers

1

Parallel processing technology support

2-Way CrossFireX

Motherboard form factor

ATX

Component for

PC

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel Z590

RAID levels

0-1-5-10

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®

Processor socket

LGA 1200 (Socket H5)

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Non-ECC

Yes

Supported memory clock speeds

2133-2666-2933-3200 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2-SATA III

RAID levels

0-1-5-10

Parallel processing technology support

2-Way CrossFireX

Maximum resolution

4096 x 2160 pixels

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 2.0 ports quantity

4

Serial ports quantity

1

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Intel I225-V

Ethernet interface type

2.5 Gigabit Ethernet

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel Z590

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek ALC897

Number of M.2 (M) slots

3

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

2

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Maximum resolution

4096 x 2160 pixels

Windows operating systems supported

Windows 10 x64

Width

305 mm

Depth

244 mm
