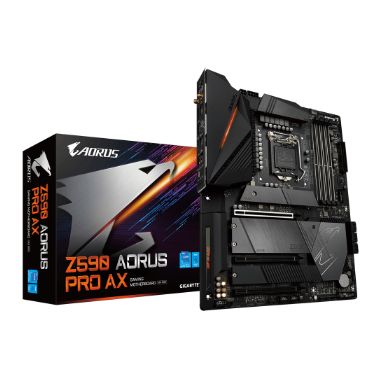

Gigabyte Z590 AORUS PRO AX motherboard Intel Z590 Express LGA 1200 ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
6
Number of chassis fan connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590 Express
PC health monitoring
Fan- Temperature- Voltage
Parallel processing technology support
2-Way CrossFireX-Quad-GPU CrossFireX
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590 Express
RAID levels
0-1-5-10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2933-3000-3200 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
2-Way CrossFireX-Quad-GPU CrossFireX
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB 2.0 ports quantity
4
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.1
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590 Express
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC4080
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 slots
3
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Software
Windows operating systems supported
Windows 10 x64
Drivers included
Yes
Bundled software
Norton Internet Security- cFosSpeed
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Bundled software
Norton Internet Security- cFosSpeed
