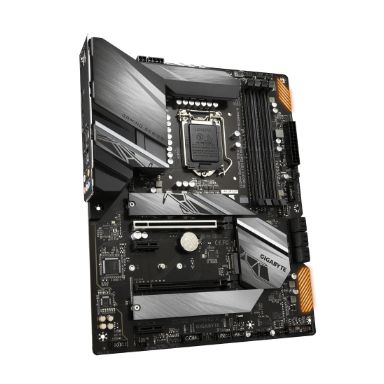

Gigabyte Z590 GAMING X motherboard Intel Z590 Express LGA 1200 ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Power fan connector
Yes
Peripheral (Molex) power connectors (4-pin)
4
Number of SATA III connectors
6
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590 Express
Supported processor sockets
LGA 1200 (Socket H5)
Serial port headers
1
PC health monitoring
Fan- Temperature- Voltage
Parallel processing technology support
2-Way CrossFireX-Quad-GPU CrossFireX
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590 Express
RAID levels
0-1-5-10
Supported processor sockets
LGA 1200 (Socket H5)
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®
Supported processor sockets
LGA 1200 (Socket H5)
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2933-3000-3200 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
Number of storage drives supported
9
Graphics
Parallel processing technology support
2-Way CrossFireX-Quad-GPU CrossFireX
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB connector type
USB Type-A- USB Type-C
USB 2.0 ports quantity
2
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
6
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590 Express
Supported processor sockets
LGA 1200 (Socket H5)
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 slots
2
PCI Express x1 slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64
Drivers included
Yes
Bundled software
Norton Internet Security- Realtek 8125 Gaming LAN Bandwidth Control Utility
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Bundled software
Norton Internet Security- Realtek 8125 Gaming LAN Bandwidth Control Utility
