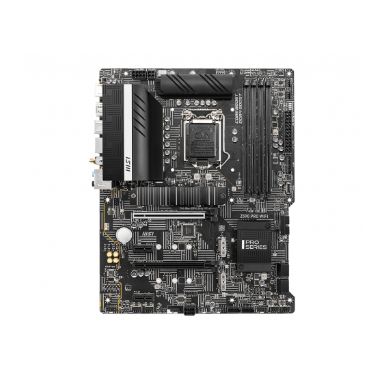

MSI Z590 PRO WIFI Intel Z590 LGA 1200 ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z590

Serial port headers

1

Parallel processing technology support

Crossfire

HDMI version

2.0b

Cooling type

Active

Motherboard form factor

ATX

Component for

PC

Total number of SATA connectors

6

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Motherboard chipset family

Intel

Motherboard chipset

Intel Z590

RAID levels

0-1-5-10

Cooling type

Active

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio connector

Yes

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®- Intel Core i9- Intel Pentium G

Processor socket

LGA 1200

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Non-ECC

Yes

Supported memory clock speeds

2133-2666-2933-4000-4400-4700-5333 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2-SATA

RAID levels

0-1-5-10

Parallel processing technology support

Crossfire

Graphics adapter family

AMD

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Total number of SATA connectors

6

Audio connector

Yes

Supported storage drive interfaces

M.2-SATA

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Serial port headers

1

Power fan connector

Yes

Number of SATA connectors

6

Front panel audio connector

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPort version

1.4

USB 2.0 ports quantity

2

PS/2 ports quantity

1

HDMI version

2.0b

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax)

LAN controller

Intel I225-V

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.2

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Motherboard chipset family

Intel

Motherboard chipset

Intel Z590

Cooling type

Active

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek ALC897

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 slots

2

PCI Express x16 (Gen 4.x) slots

1

Graphics adapter family

AMD

Width

305 mm

Depth

244 mm

Cables included

SATA
