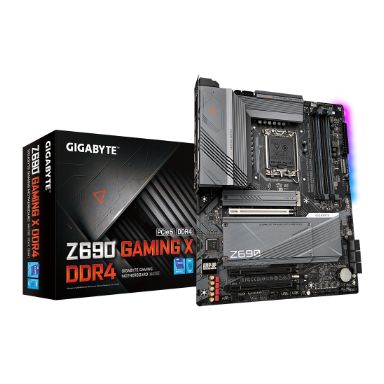

Gigabyte Z690 GAMING X DDR4 (rev. 1.0) Intel Z690 LGA 1700 ATX
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
PC health monitoring
Fan- Temperature- Voltage
Parallel processing technology support
2-Way CrossFireX- Quad-GPU CrossFireX
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
RAID levels
0- 1- 5- 10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933-3000-3200-3300-3333-3400-3466-3600-3666-3733-3800-3866-4000-4133-4266-4300-4400-4500-4600-4700-4800-4933-5000-5133-5333 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Parallel processing technology support
2-Way CrossFireX- Quad-GPU CrossFireX
HDCP
Yes
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
6
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
S/PDIF out port
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1220-VB
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x16 slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
70 mm
Weight
1 kg
Width
305 mm
Depth
244 mm
Other features
Height
70 mm
Weight
1 kg
