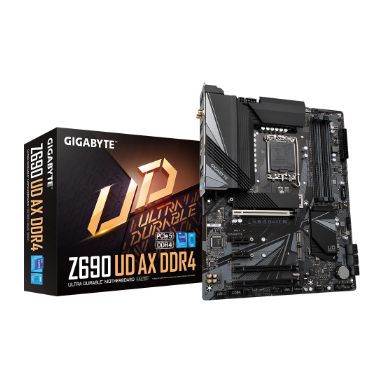

Gigabyte Z690 UD AX DDR4 motherboard Intel Z690 LGA 1700 ATX
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
PC health monitoring
Fan- Temperature- Voltage- Water cooling
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 Home x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
RAID levels
0- 1- 5- 10
PC health monitoring
Fan- Temperature- Voltage- Water cooling
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4000-4800-5200-5400-5600-5800-6000 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
NVMe- PCI Express- SATA
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Internal I/O
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Supported storage drive interfaces
NVMe- PCI Express- SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
6
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
S/PDIF out port
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Windows operating systems supported
Windows 10 Home x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
PC health monitoring
Fan- Temperature- Voltage- Water cooling
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10 Home x64- Windows 11 x64
Bundled software
Norton Internet Security (OEM version) RealtekGaming LAN Bandwidth Control Utility
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Bundled software
Norton Internet Security (OEM version) RealtekGaming LAN Bandwidth Control Utility
Gigabyte Z690 UD AX DDR4 motherboard Intel Z690 LGA 1700 ATX
