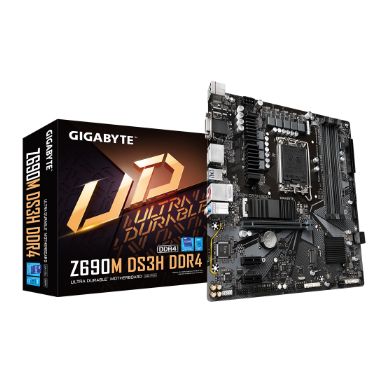

Gigabyte Z690M DS3H DDR4 (rev. 1.0) Intel Z690 LGA 1700 micro ATX
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Number of displays supported
4
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
PC health monitoring
Fan- Temperature- Voltage
HDMI version
2.0
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
SSD
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
RAID levels
0- 1- 5- 10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Pentium® Gold
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933-3000-3200-3300-3333-3400-3466-3600-3666-3733-3800-3866-4000-4133-4266-4300-4400-4500-4600-4700-4800-4933-5000-5133-5333 MHz
Supported memory module capacities
32GB
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
SSD
Supported storage drive interfaces
PCI Express 4.0
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Number of displays supported
4
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Internal I/O
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
PCI Express 4.0
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Parallel connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x16 slots
1
PCI Express x1 slots
2
BIOS
BIOS type
EFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10
Weight & dimensions
Height
70 mm
Weight
1 kg
Width
244 mm
Depth
244 mm
Other features
Height
70 mm
Weight
1 kg
Gigabyte Z690M DS3H DDR4 (rev. 1.0) Intel Z690 LGA 1700 micro ATX
