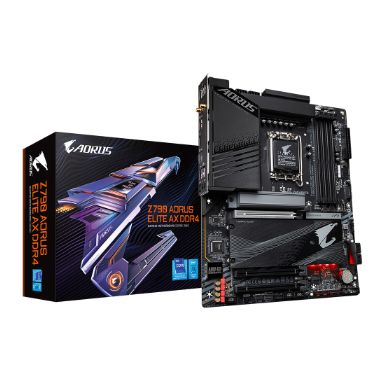

Gigabyte Z790 AORUS ELITE AX DDR4 (REV 1.0) motherboard Intel Z790 LGA 1700 ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Total number of SATA connectors
4
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
HDMI version
2.0
Motherboard form factor
ATX
Component for
PC
Total number of SATA connectors
4
Maximum internal memory supported by processor
128 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
128 GB
Compatible processor series
Intel® Celeron®, Intel® Core⢠i3, Intel® Core⢠i5, Intel® Core⢠i7, Intel® Core⢠i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
5333 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.2
USB connector type
USB Type-A, USB Type-C
USB 2.0 ports quantity
4
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
2
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Product colour
Black
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 slots
3
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.32 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.32 kg
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Bundled software
Norton Internet Security
Batteries included
Yes
Other features
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.32 kg
