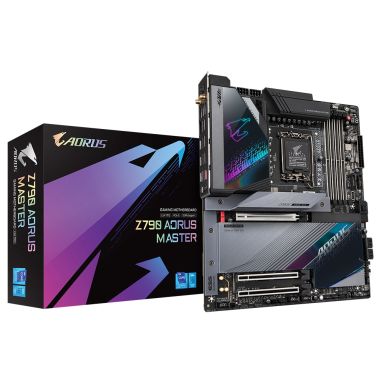

Gigabyte Z790 AORUS MASTER motherboard Intel Z790 LGA 1700 Extended ATX
In Stock
|
$402.34
$482.81 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
5
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- PCI Express 4.0- PCI Express 5.0- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
PC health monitoring
Fan- Noise- Temperature- Voltage- Water cooling
Parallel processing technology support
Crossfire
Motherboard form factor
Extended ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
RAID levels
0- 1- 5- 10
Supported processor sockets
LGA 1700
PC health monitoring
Fan- Noise- Temperature- Voltage- Water cooling
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9- Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
8000-7950-7900-7800-4000-4800-5200-5400-5600-5800-6000-6200-6400-6600-6800-7000-7200-7400-7600 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8000 MHz
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- PCI Express 4.0- PCI Express 5.0- SATA III
RAID levels
0- 1- 5- 10
Number of storage drives supported
9
RAID support
Yes
Graphics
Parallel processing technology support
Crossfire
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
DisplayPort version
1.2
USB connector type
USB Type-A- USB Type-C
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)- Wi-Fi 6E (802.11ax)
LAN controller
Marvell AQtion AQC113C
Ethernet interface type
10 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Killer Wi-Fi 6E AX1690
Features
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
PC health monitoring
Fan- Noise- Temperature- Voltage- Water cooling
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Audio chip
Realtek ALC1220-VB
Expansion slots
Number of M.2 (M) slots
5
PCI Express x16 slots
3
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Weight & dimensions
Width
305 mm
Depth
260 mm
Packaging content
Cables included
SATA
Gigabyte Z790 AORUS MASTER motherboard Intel Z790 LGA 1700 Extended ATX
